Product code: 7470

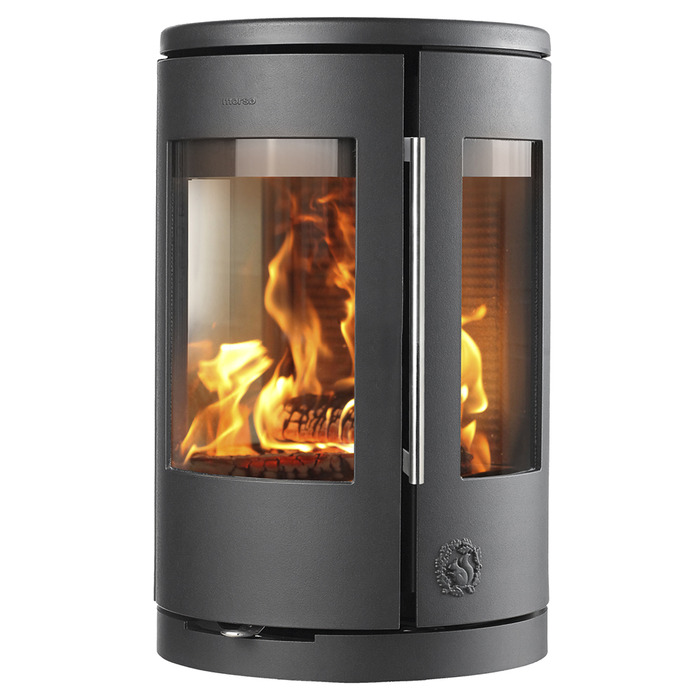

Cast Iron 3-Sided Stove MORSO 7470 Wall Hung
Cast Iron 3-Sided Stove MORSO 7470 Wall Hung
Cast Iron 3-Sided Stove MORSO 7470 Wall Hung. Photo 2
Cast Iron 3-Sided Stove MORSO 7470 Wall Hung. Photo 3
  • New
  • Sale
  • -10%
Product code: 7470
For comparison

Cast Iron 3-Sided Stove MORSO 7470 Wall Hung

In stock
Characteristics Cast Iron 3-Sided Stove MORSO 7470 Wall Hung
Model description
  • Nominal heat output (kW) 4.3
  • Efficiency (%) 82.3
  • Heating capacity (m²) 105
  • Door opening mechanism left side
  • Glass form straight
  • Clean glass system yes
  • Ashpan yes
  • Triple combustion yes
  • Preheated combustion air yes
  • External air supply lower / rear
  • Flue exit options top / rear
  • Compatible with recuperation yes
  • Compatible with Ecodesign requirements yes
  • Compatible with Nordic Swan Ecolabel yes
  • Energy class A+
Main dimensions
  • Weight (kg) 108
  • Length (mm) 440
  • Height (mm) 696
  • Width (mm) 377
  • Flue pipe diameter (mm) 125-150
Additional dimensions
  • Air inlet diameter (mm) 98
  • Main glass demension (mm) 359x241.5
  • Side glass demension (mm) 360x140
Additional Information
  • Material cast iron
  • Fuel wood
  • Warranty 10 years
  • Producer MORSO
  • Country Denmark
Main dimensions
  • Weight (kg) 108
  • Length (mm) 440
  • Height (mm) 696
  • Width (mm) 377
  • Flue pipe diameter (mm) 125-150
Additional Information
  • Material cast iron
  • Fuel wood
  • Warranty 10 years
  • Producer MORSO
  • Country Denmark
Model description
  • Nominal heat output (kW) 4.3
  • Efficiency (%) 82.3
  • Heating capacity (m²) 105
  • Door opening mechanism left side
  • Glass form straight
  • Clean glass system yes
  • Ashpan yes
  • Triple combustion yes
  • Preheated combustion air yes
  • External air supply lower / rear
  • Flue exit options top / rear
  • Compatible with recuperation yes
  • Compatible with Ecodesign requirements yes
  • Compatible with Nordic Swan Ecolabel yes
  • Energy class A+
Additional dimensions
  • Air inlet diameter (mm) 98
  • Main glass demension (mm) 359x241.5
  • Side glass demension (mm) 360x140
Description Cast Iron 3-Sided Stove MORSO 7470 Wall Hung

MORSO 7470 is a compact 4.3 kW cast iron stove for rooms up to 105 m² that need additional or seasonal heat. The 108 kg cast iron body of MORSO 7470 holds heat after the fire dies down, so the room temperature stays even.

Efficiency of the model is 82.3 %, energy class A+; compliant with Ecodesign and the Nordic Swan Ecolabel.

  • straight glass with the clean glass system — soot does not block the view of the fire
  • The door opens left side; flue connection top / rear, diameter 125-150 mm
  • External air supply — lower / rear; compatible with heat recovery ventilation
  • Triple combustion and a removable ash pan
  • Dimensions 440×696×377 mm, weight 108 kg
  • Material — cast iron, made in Denmark

Is the 4.3 kW of MORSO 7470 enough for my house?

MORSO 7470 is rated for roughly 105 m² with standard insulation and a ceiling height of 2.5–2.7 m. For a less insulated house or a higher ceiling, choose the next power class up.

Will MORSO 7470 work in a house with heat recovery ventilation?

Yes. MORSO 7470 is compatible with heat recovery and draws combustion air from outside, so it does not compete with the ventilation for room air.

Where can MORSO 7470 be installed?

MORSO 7470 measures 440×696×377 mm. Clearances to walls and combustible surfaces are taken from the manufacturer manual, available in the documents section on this page.

MORSO cast iron stoves carry a 10-year warranty.

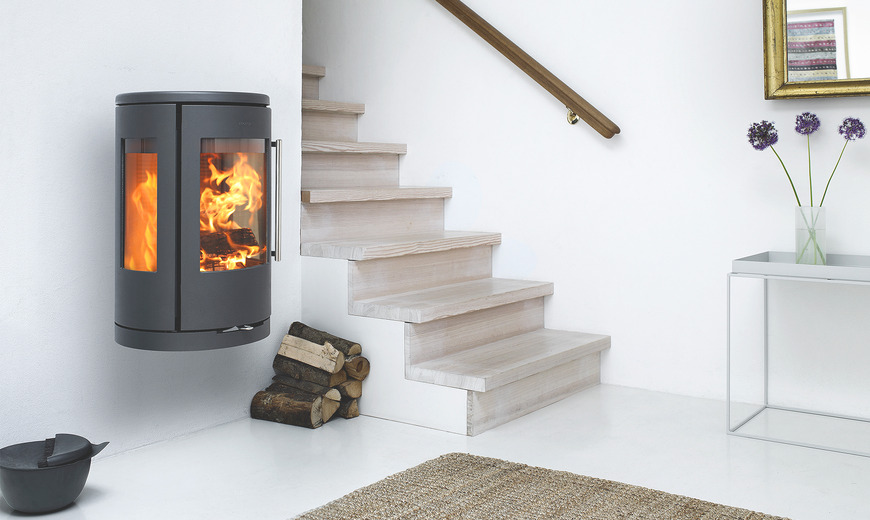

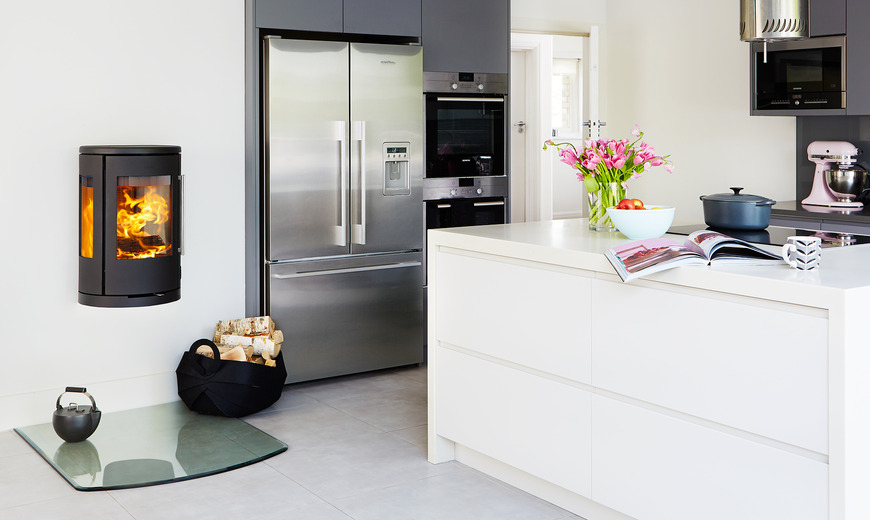

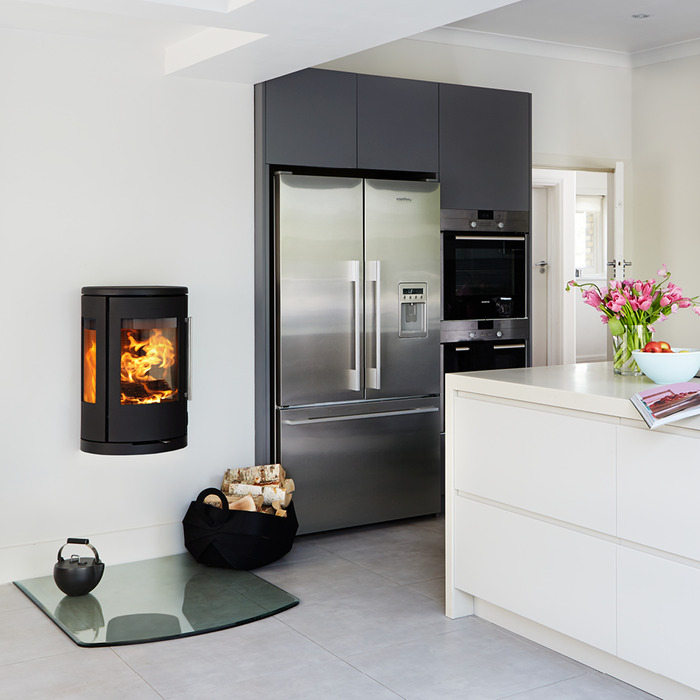

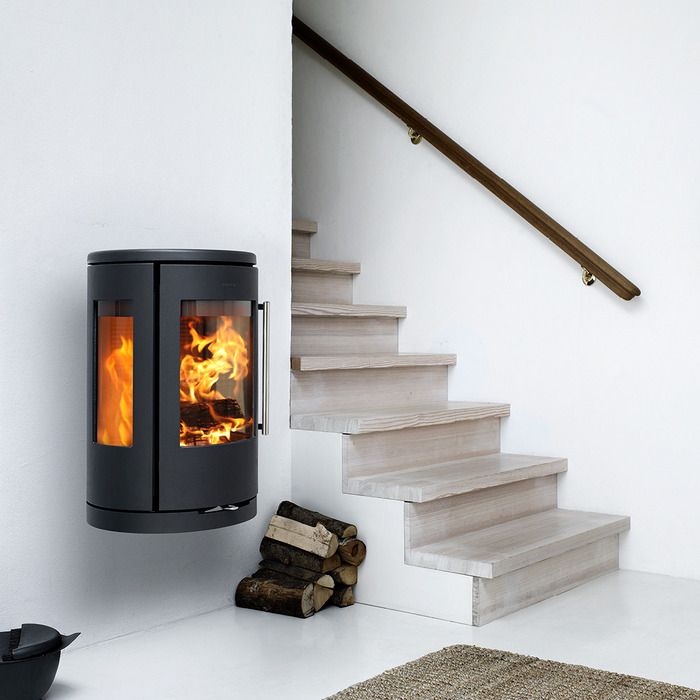

In the interior

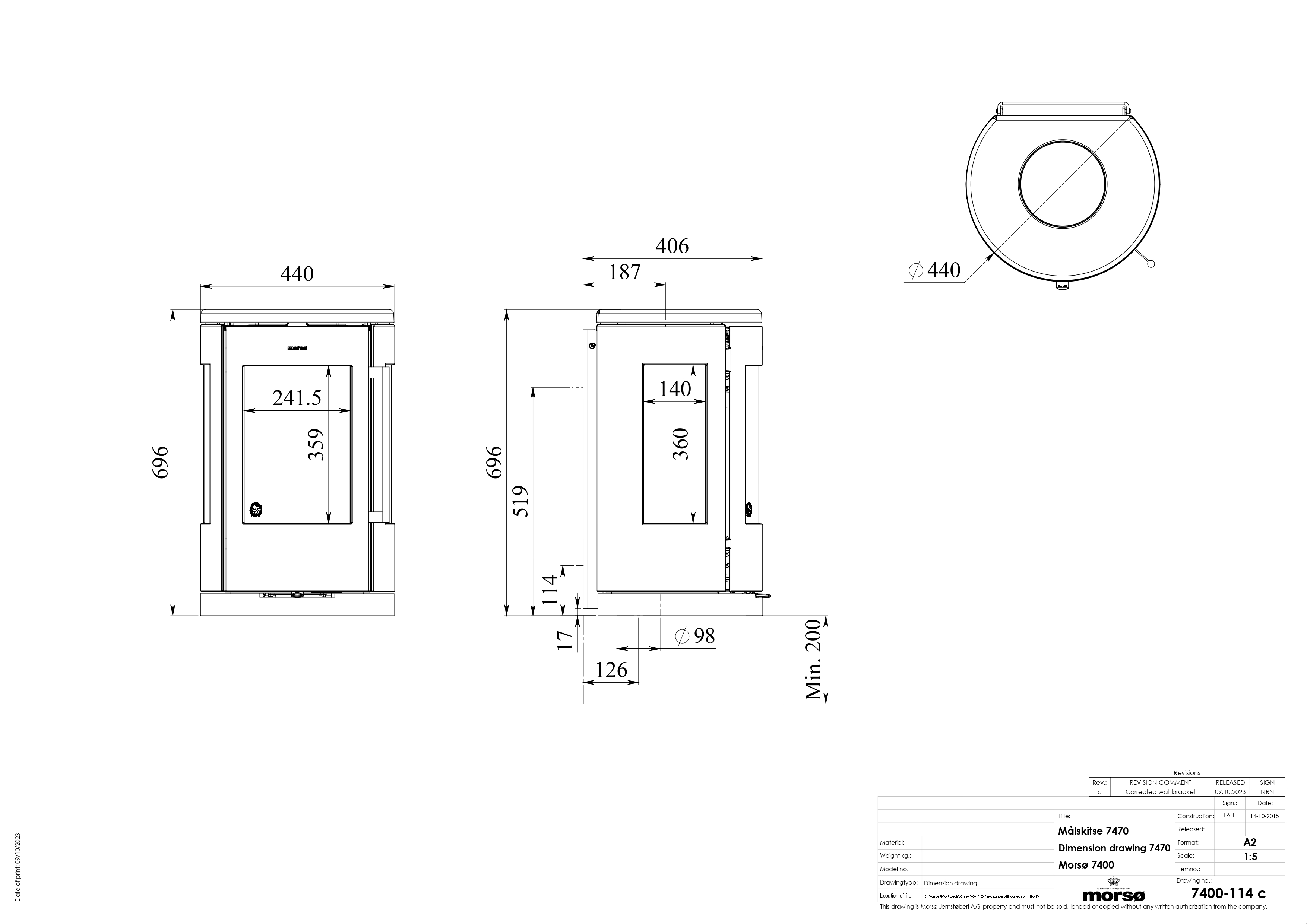

Technical drawing Cast Iron 3-Sided Stove MORSO 7470 Wall Hung
Documentation
Каталог печей Morso PDF, 7.5 Mb
Installation Manual for Wall-Hung Stoves Morso 7370/7470 PDF, 3.5 Mb
Installation and operation manual Morso 7300/7400 PDF, 2.3 Mb
Declaration of perfomance Morso 7470 PDF, 0.1 Mb
Technical documentation Morso 7470 PDF, 0.2 Mb
Product sheet Morso series 7300/7400 PDF, 0.3 Mb
Energy efficiency Morso series 7300/7400 PDF, 1.1 Mb
