Product code: KAW-MET W16 9.4KW BL/ECO

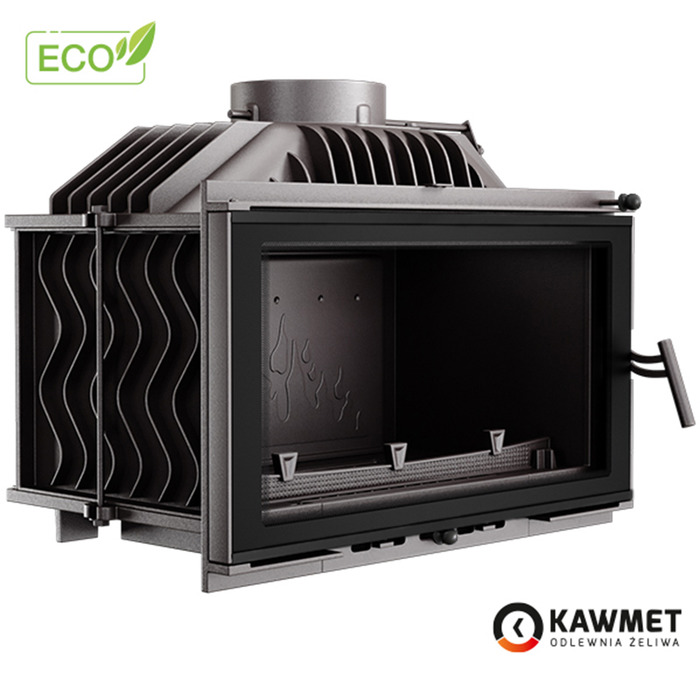

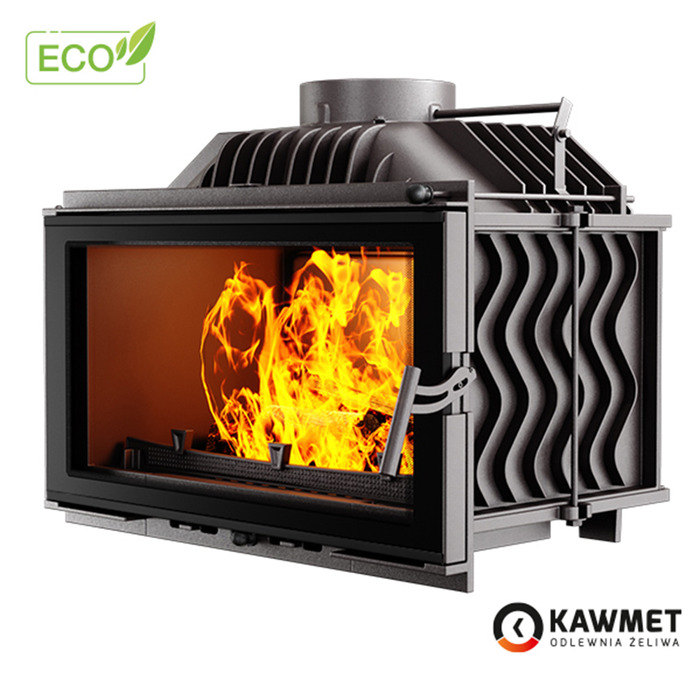

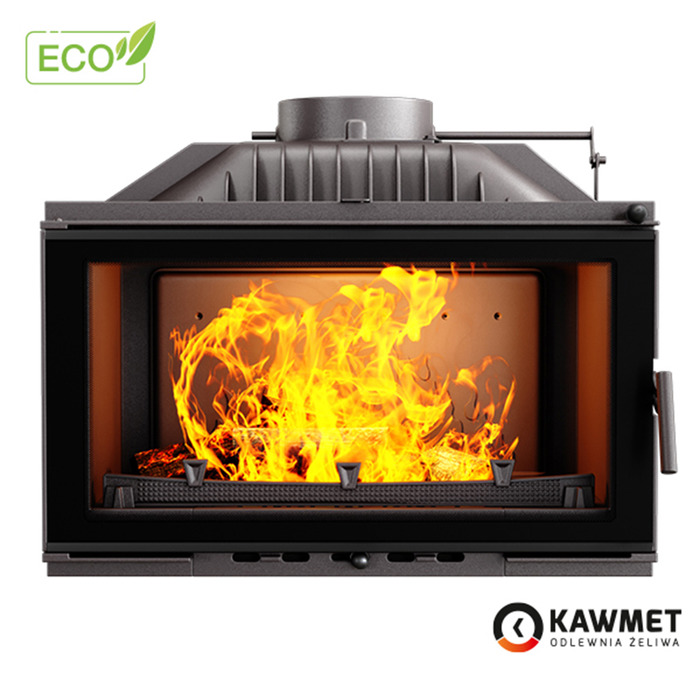

Fireplace insert KAWMET W16 Black (9.4 kW) ECO
Product code: KAW-MET W16 9.4KW BL/ECO
For comparison

Fireplace insert KAWMET W16 Black (9.4 kW) ECO

To order
Characteristics Fireplace insert KAWMET W16 Black (9.4 kW) ECO
Model description
  • Nominal heat output (kW) 9.4
  • Efficiency (%) 63.7
  • Heating capacity (m²/m³) 94 / 235
  • Door opening direction left
  • Glass form straight
  • Clean glass system yes
  • Double combustion yes
  • External air supply provided
  • Flue exit options top
  • Compliant with Ecodesign requirements yes
  • Energy class B
  • Flue damper yes
Main dimensions
  • Weight (kg) 78
  • Width (mm) 620
  • Height (mm) 365
  • Depth (mm) 370
  • Flue pipe diameter (mm) 180
  • Recommended cross-sectional area of outlet ventilation grilles ≥ 705 cm²
  • Recommended cross-sectional area of intake ventilation grilles ≥ 470 cm²
Additional dimensions
  • Main glass dimensions (mm) 606x306x4
  • Max length of wood (mm) 500
Additional information
  • Material cast iron
  • Fuel wood
  • Warranty (months) 60
  • Manufacturer KAWMET
  • Country Poland
Main dimensions
  • Weight (kg) 78
  • Width (mm) 620
  • Height (mm) 365
  • Depth (mm) 370
  • Flue pipe diameter (mm) 180
  • Recommended cross-sectional area of outlet ventilation grilles ≥ 705 cm²
  • Recommended cross-sectional area of intake ventilation grilles ≥ 470 cm²
Additional information
  • Material cast iron
  • Fuel wood
  • Warranty (months) 60
  • Manufacturer KAWMET
  • Country Poland
Model description
  • Nominal heat output (kW) 9.4
  • Efficiency (%) 63.7
  • Heating capacity (m²/m³) 94 / 235
  • Door opening direction left
  • Glass form straight
  • Clean glass system yes
  • Double combustion yes
  • External air supply provided
  • Flue exit options top
  • Compliant with Ecodesign requirements yes
  • Energy class B
  • Flue damper yes
Additional dimensions
  • Main glass dimensions (mm) 606x306x4
  • Max length of wood (mm) 500
Description Fireplace insert KAWMET W16 Black (9.4 kW) ECO

Fireplace insert KAWMET W16 (9,4 kW) ECO

The fireplace insert is equipped with:

  • damper requlating the chimney's thrust
  • baffle increasing its efficiency, extending the exhaust path
  • extra back plate preventing excessive insert wear
  • decorative fence screen, which prevents wood from falling out
  • air intake adjustment through ash drawer
  • external air intake - not part of fireplace kit
  • densly placed ribs, which increase the heat exchange surface
  • clean glass system
  • fume afterburning system enhances insert heating output reduces greenhouse gases emission, making the insert more eco-friendly
  • modern design - chrome fnish, screen printed glass

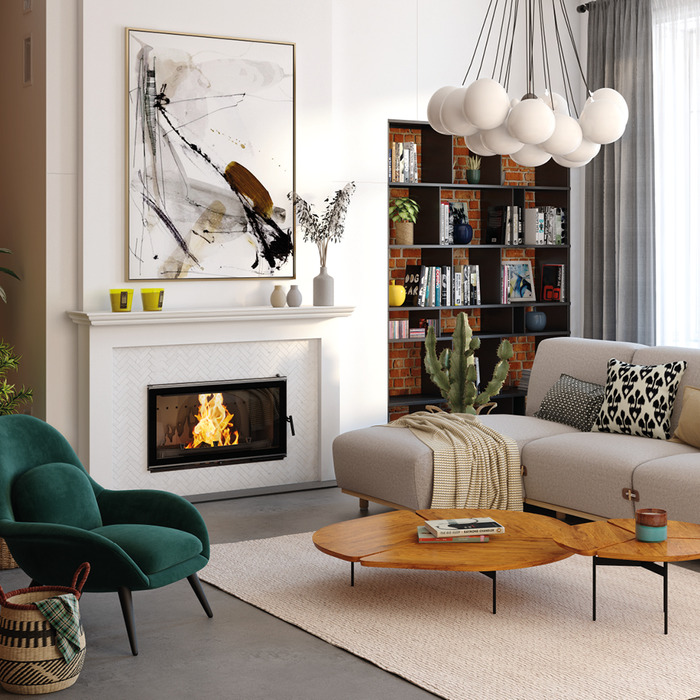

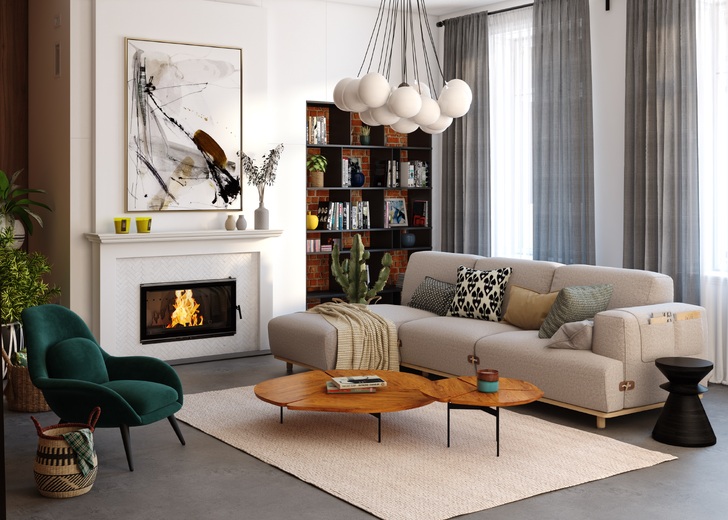

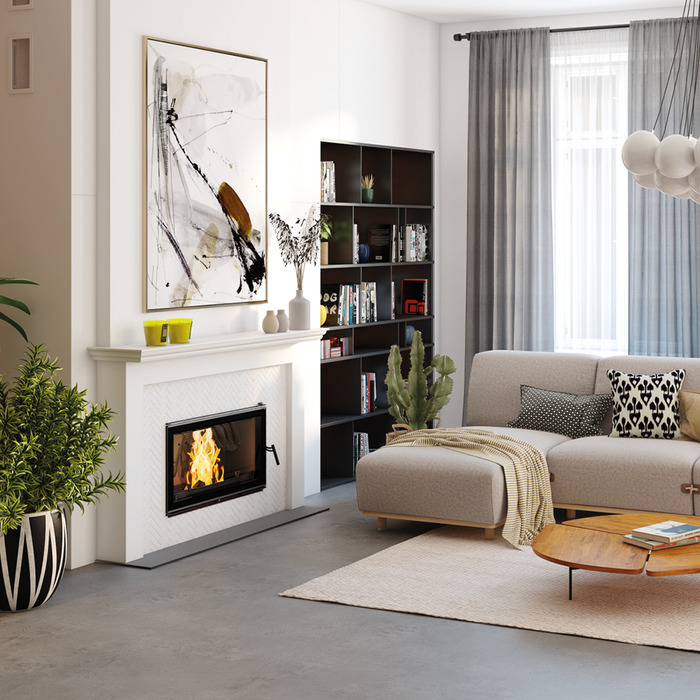

In the interior

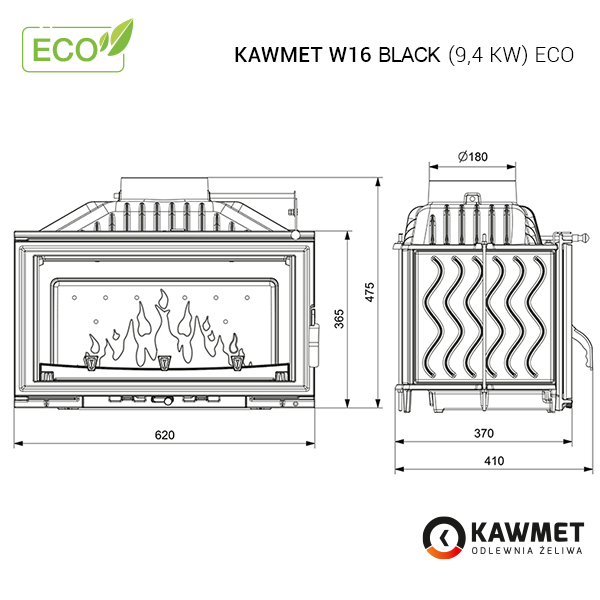

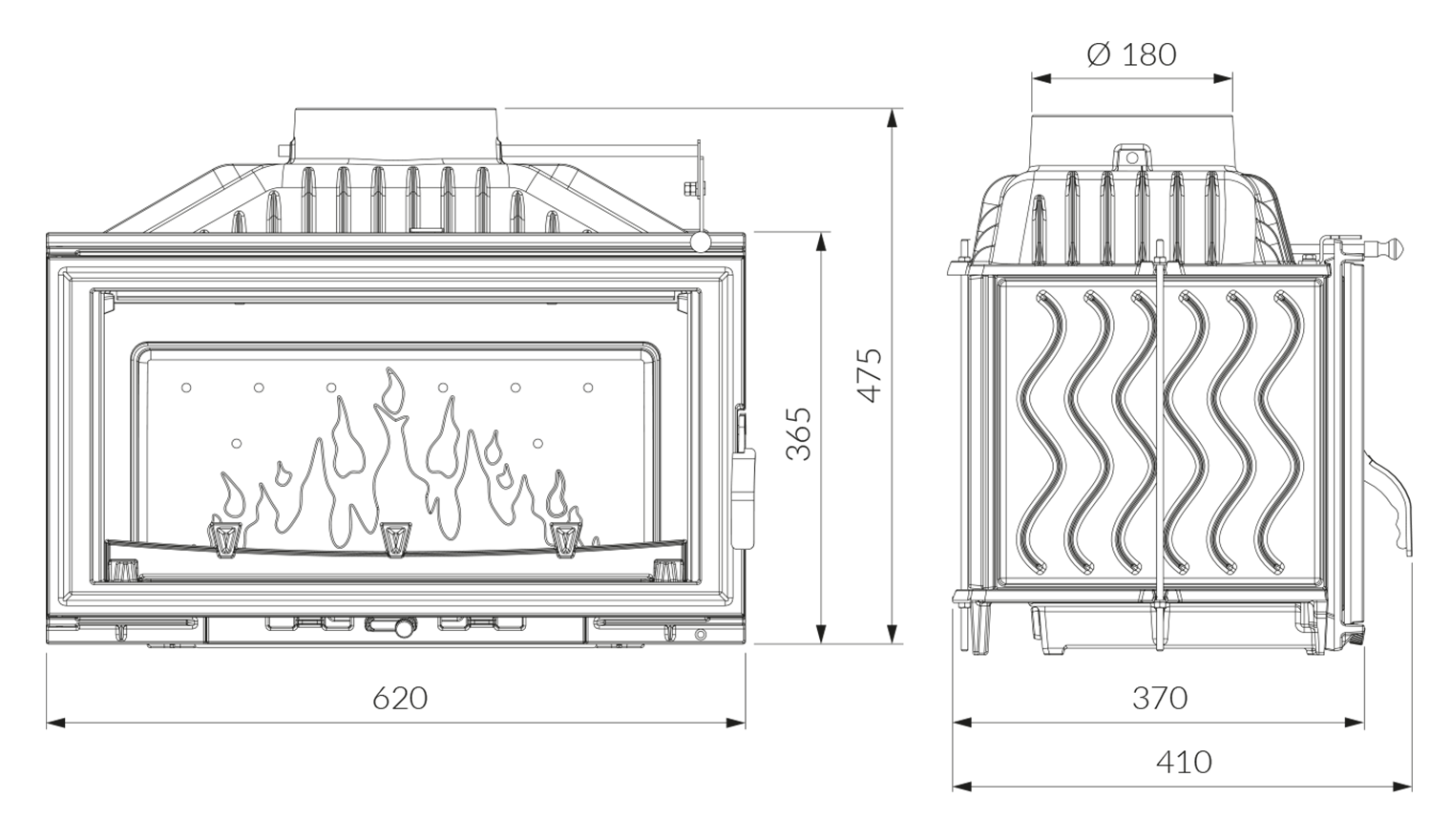

Technical drawing Fireplace insert KAWMET W16 Black (9.4 kW) ECO
Documentation
KAWMET product catalog PDF, 172 Mb
Installation and operation manual KAWMET PDF, 2.2 Mb
