Product code: SE/85/50/47/L

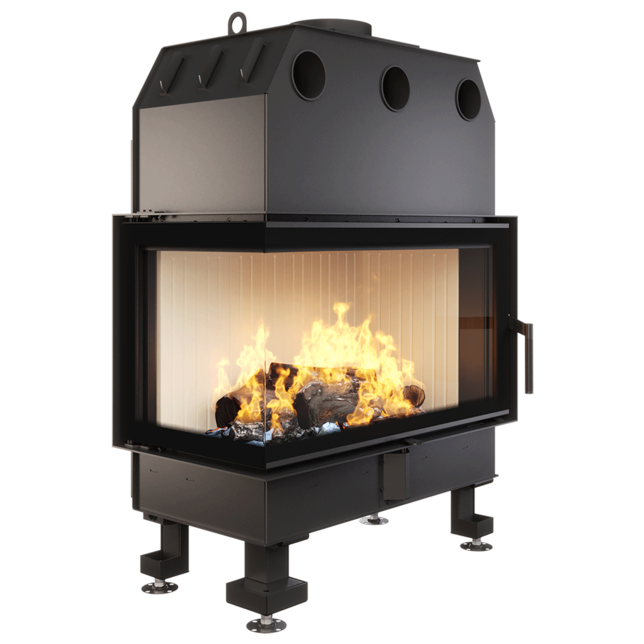

Fireplace insert SAVEN Energy 85x50x47L (17,0 kW) ECO
Fireplace insert SAVEN Energy 85x50x47L (17,0 kW) ECO

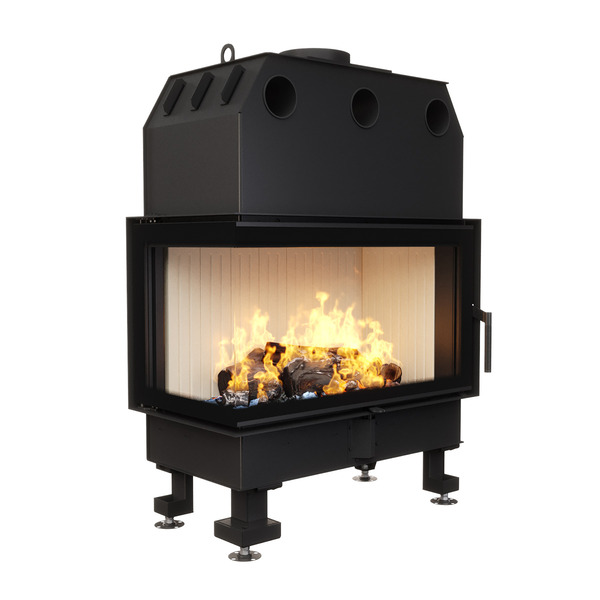

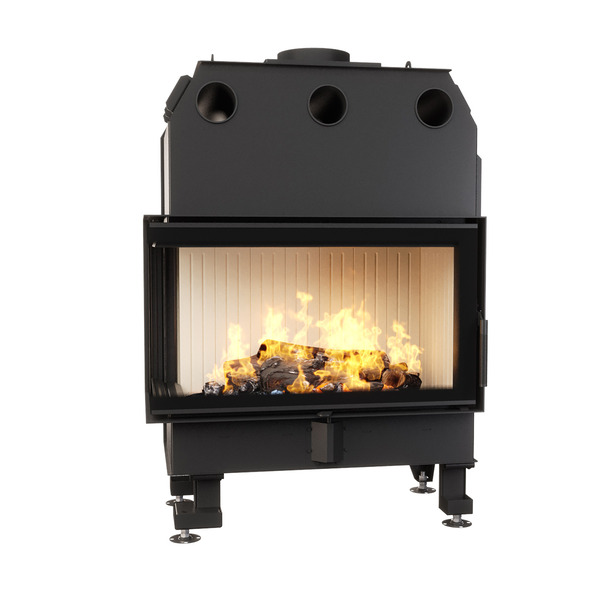

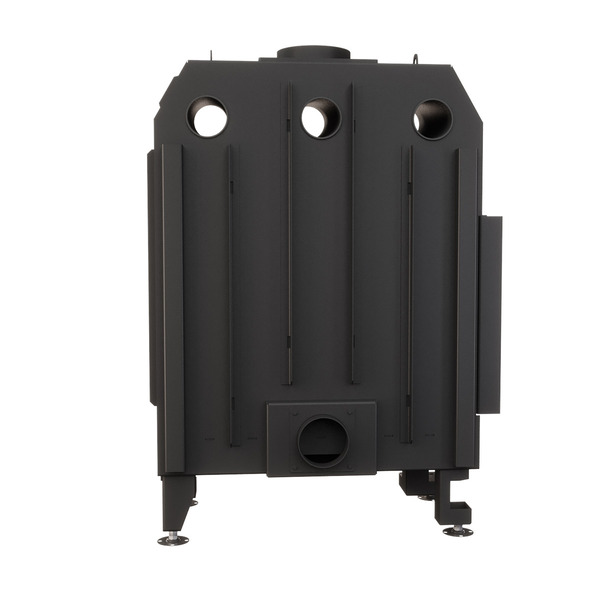

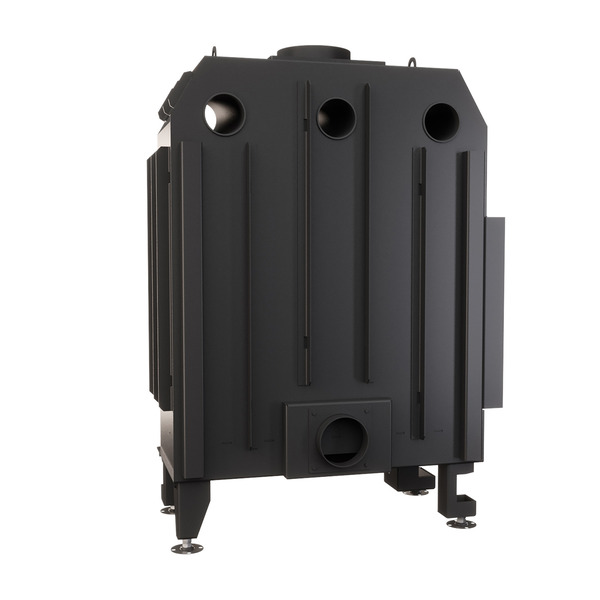

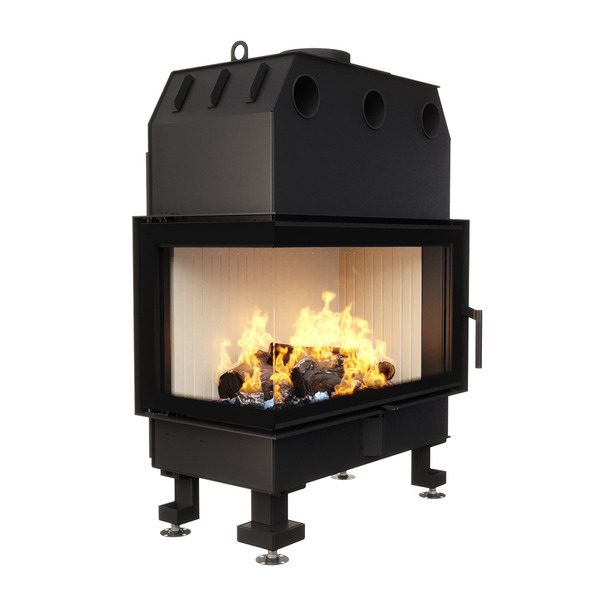

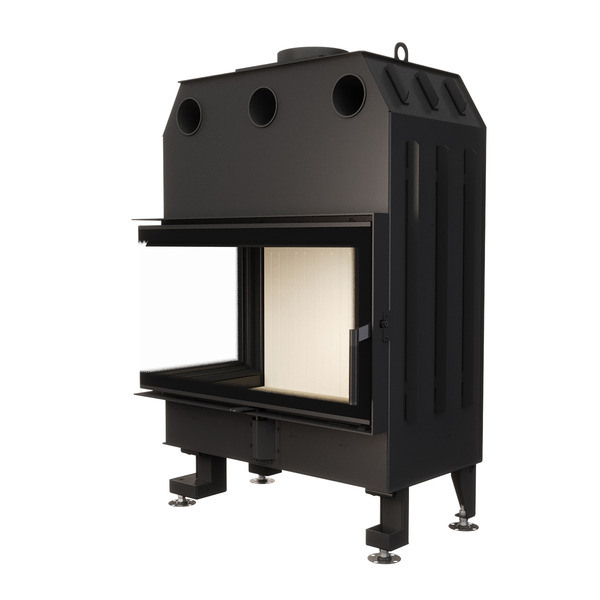

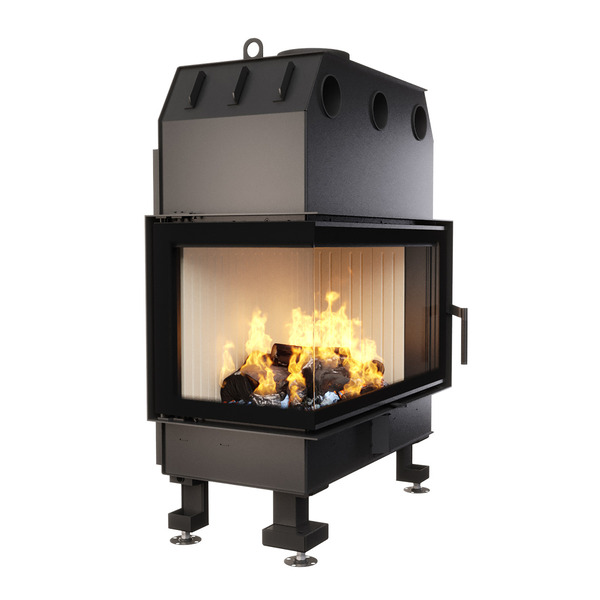

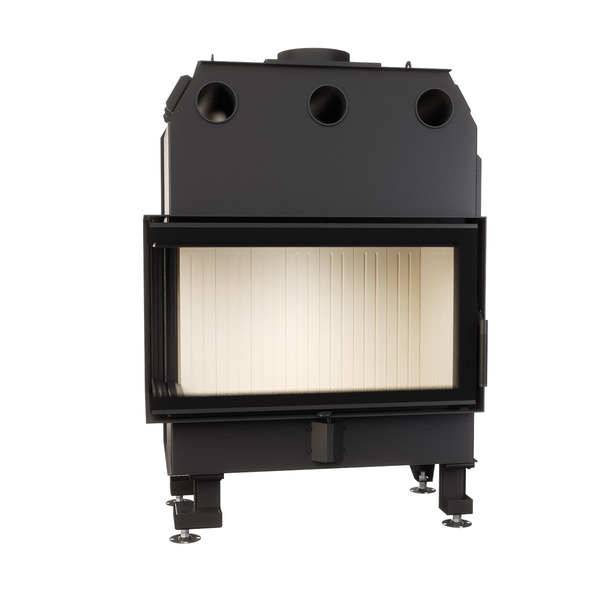

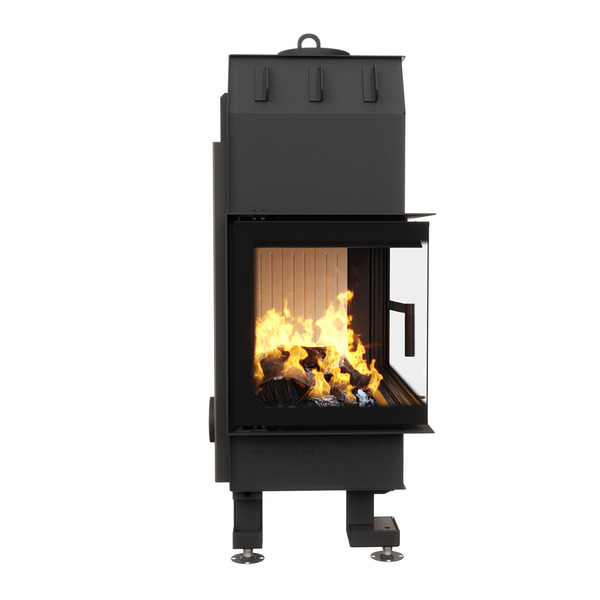

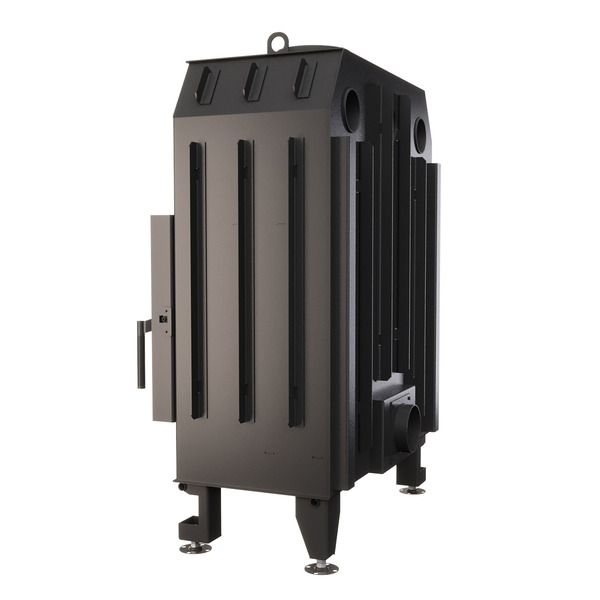

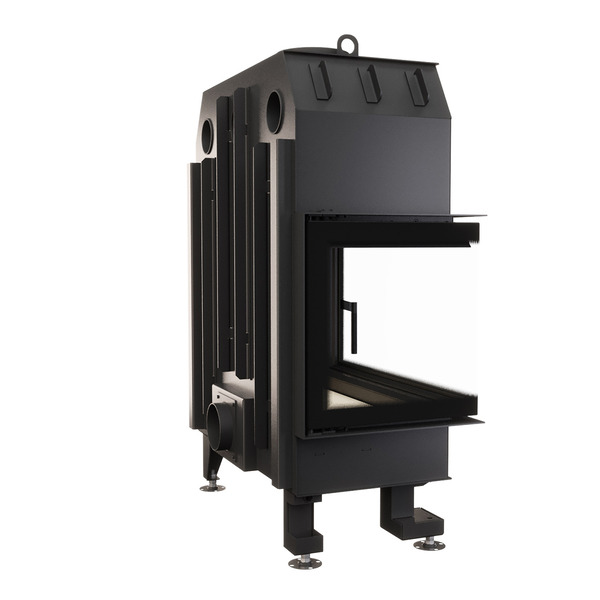

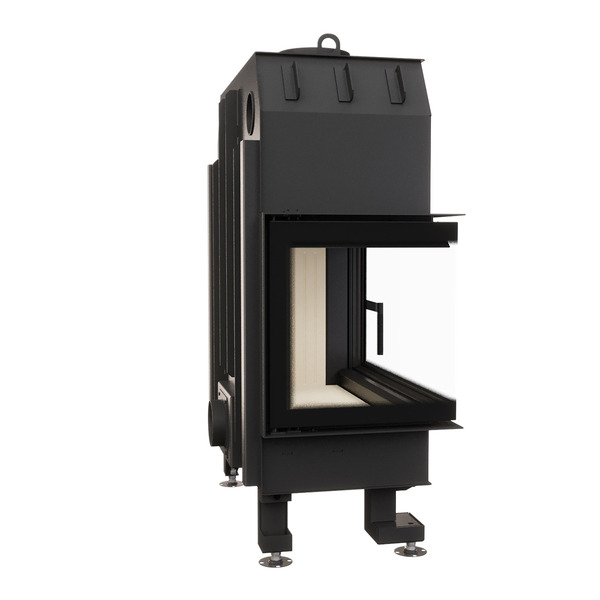

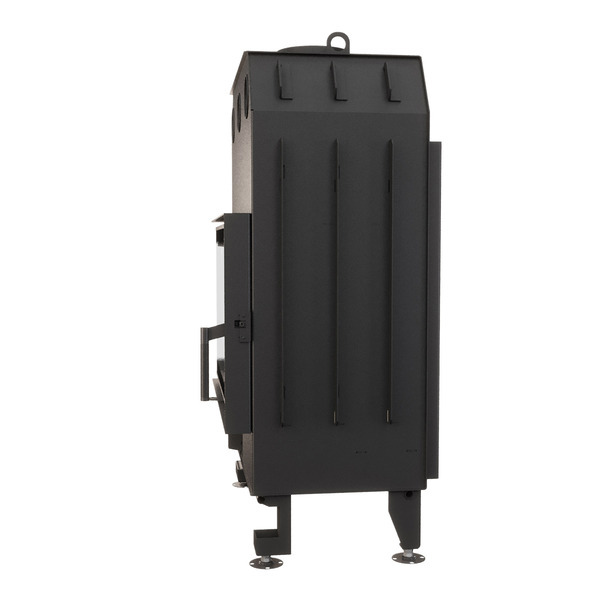

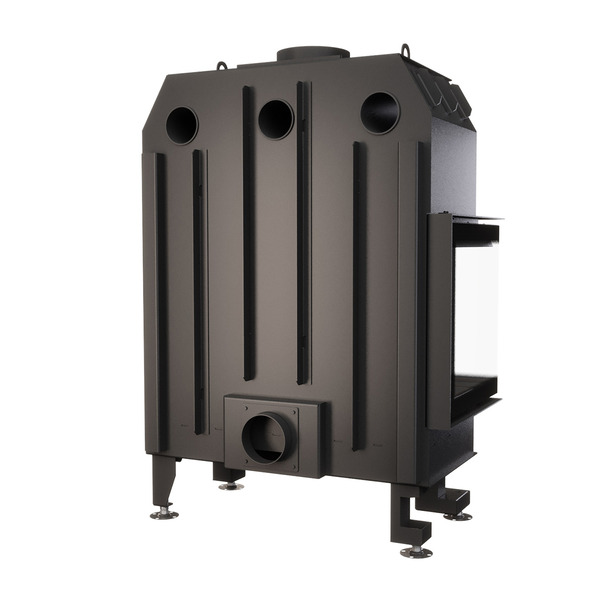

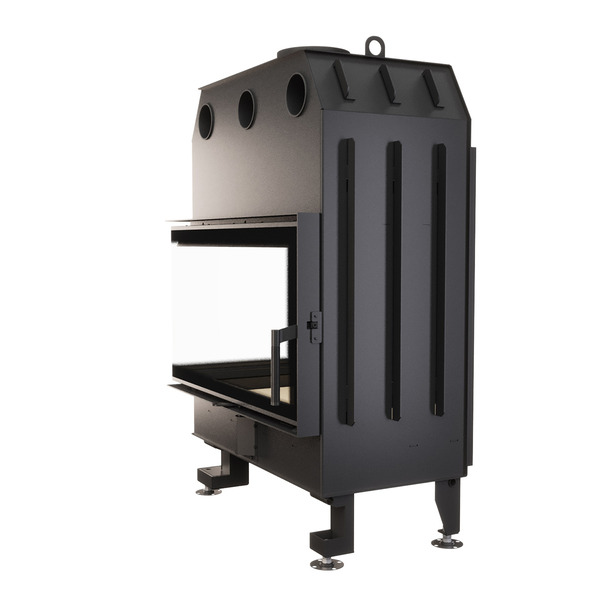

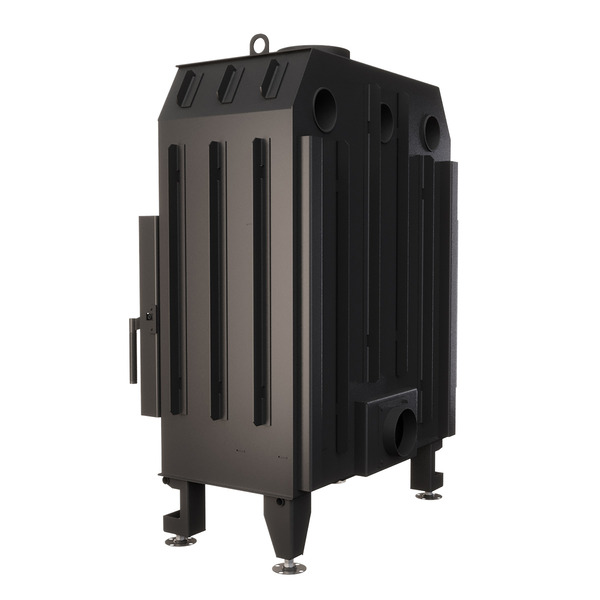

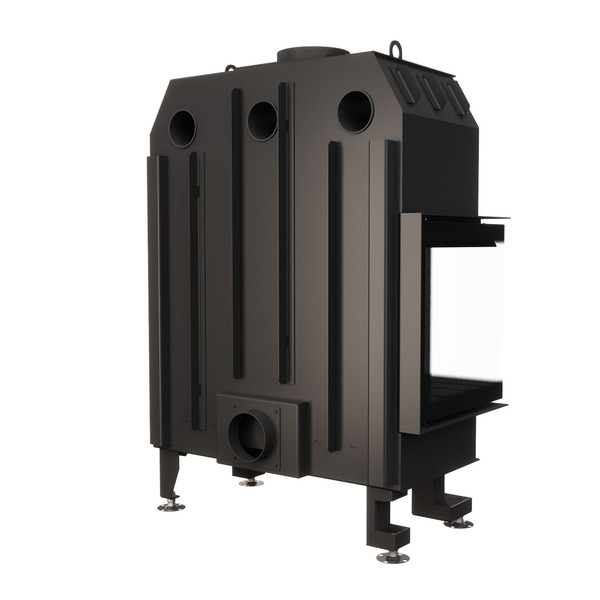

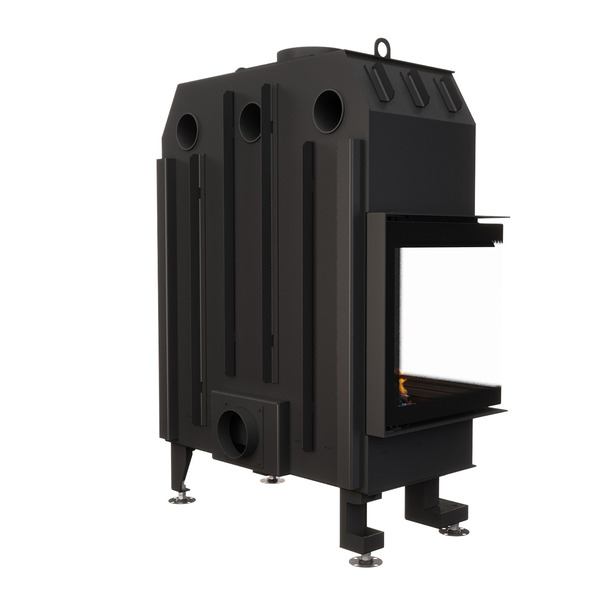

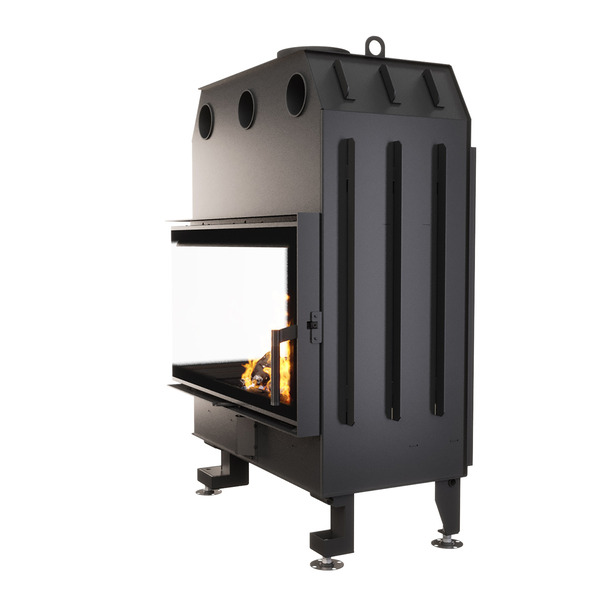

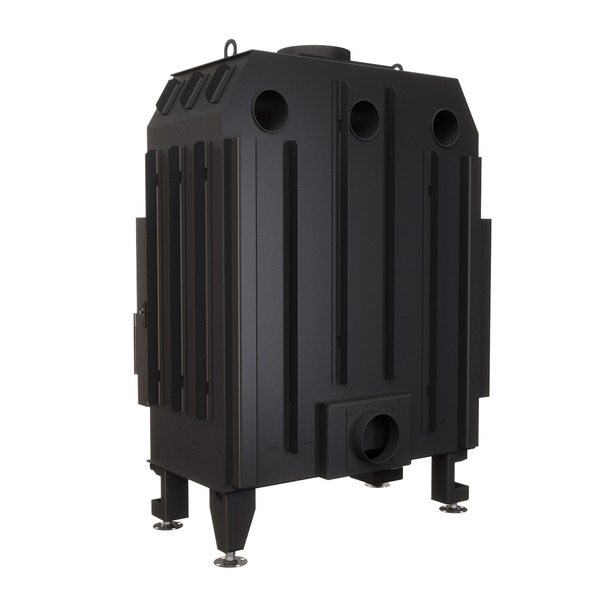

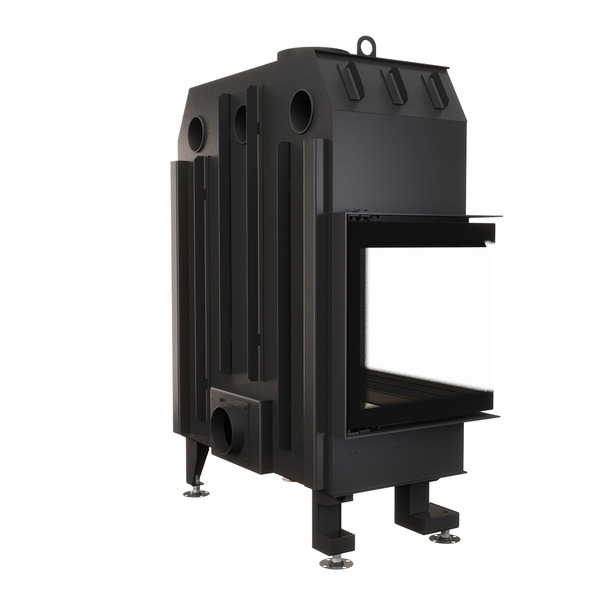

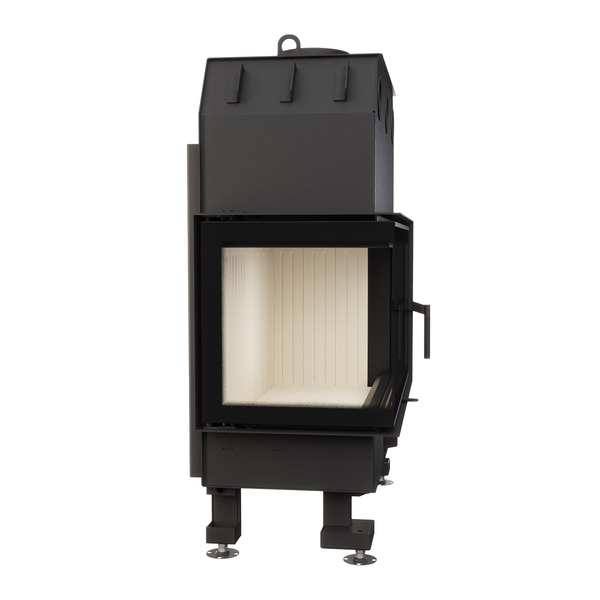

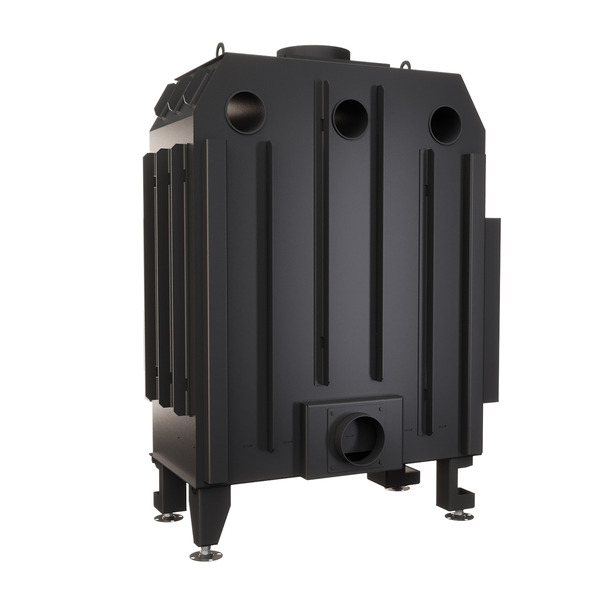

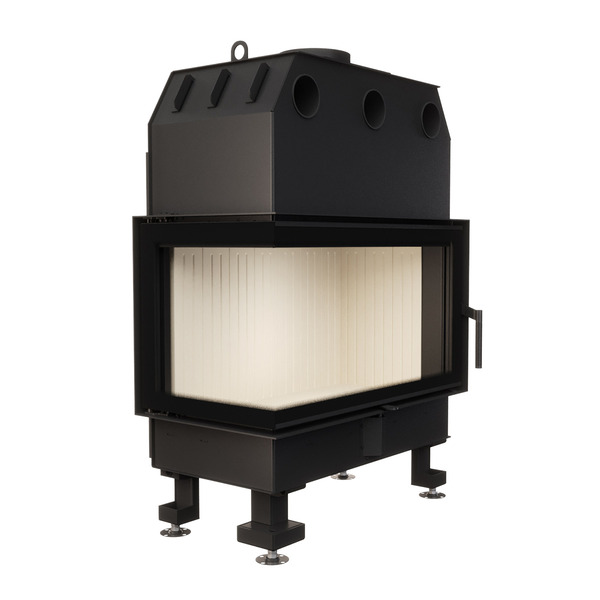

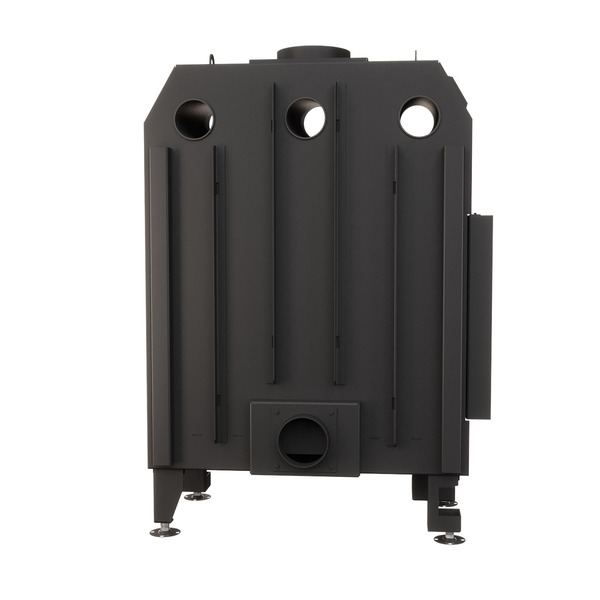

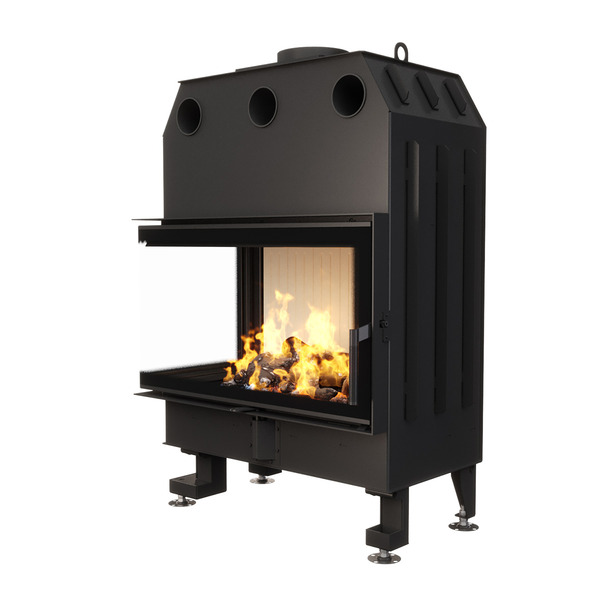

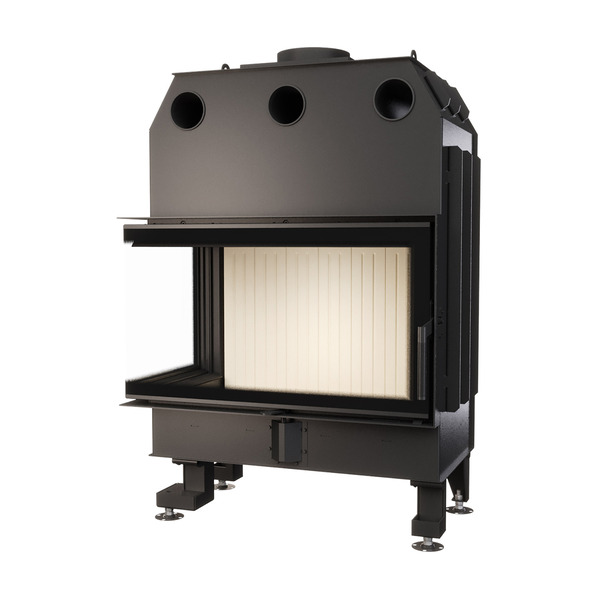

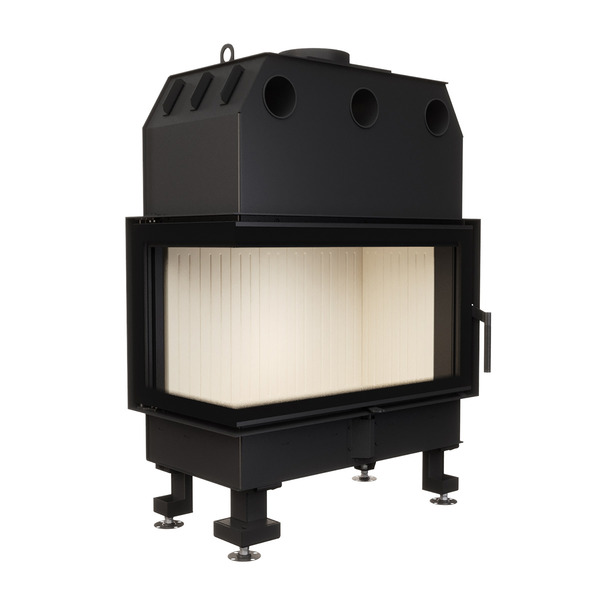

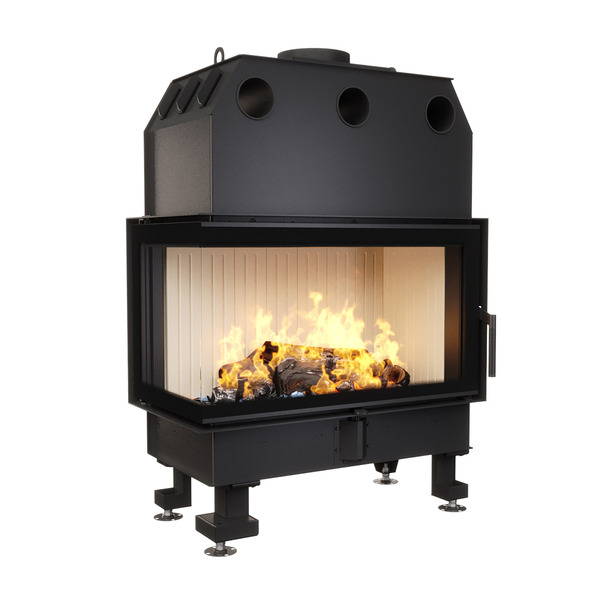

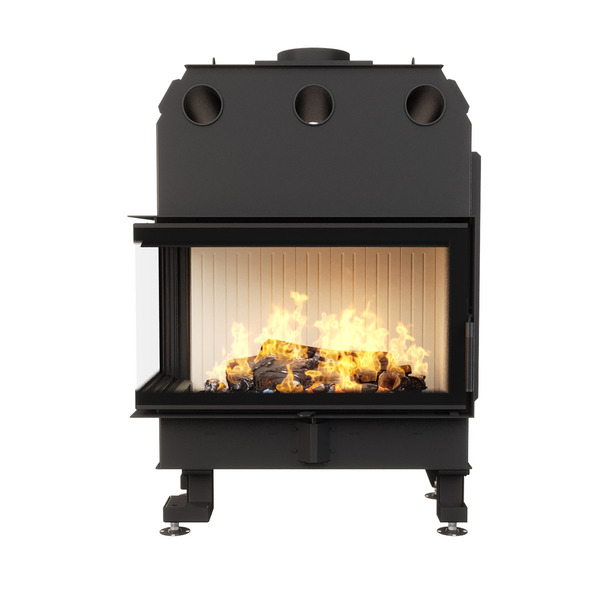

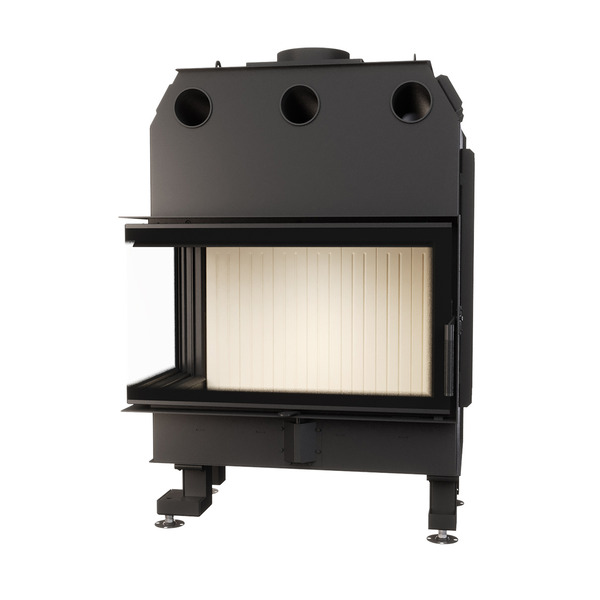

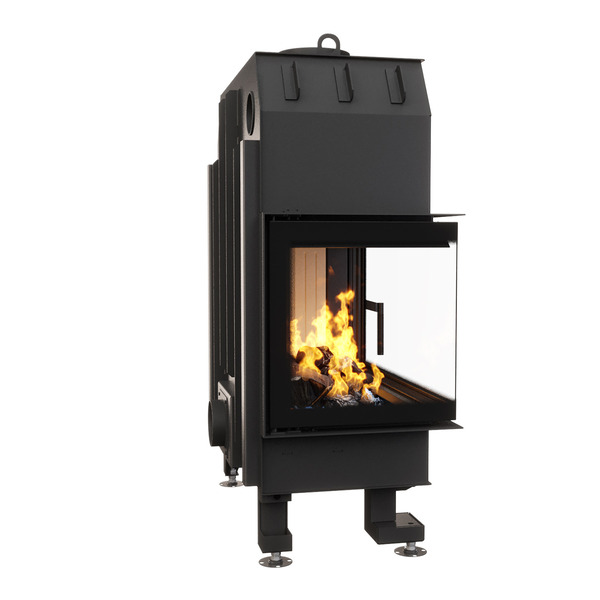

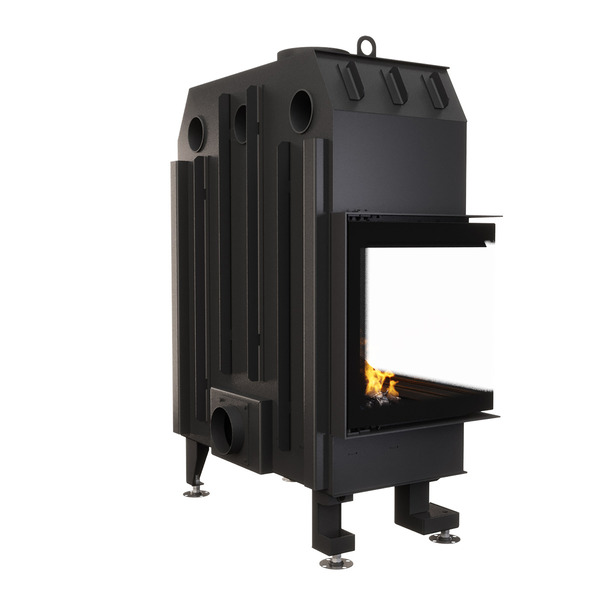

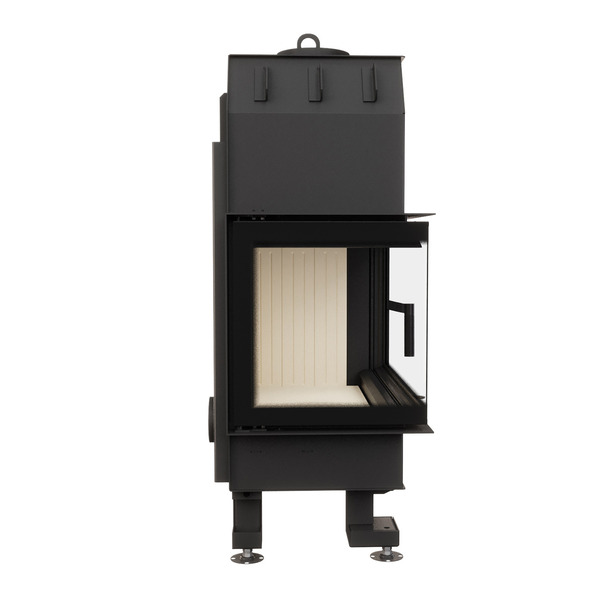

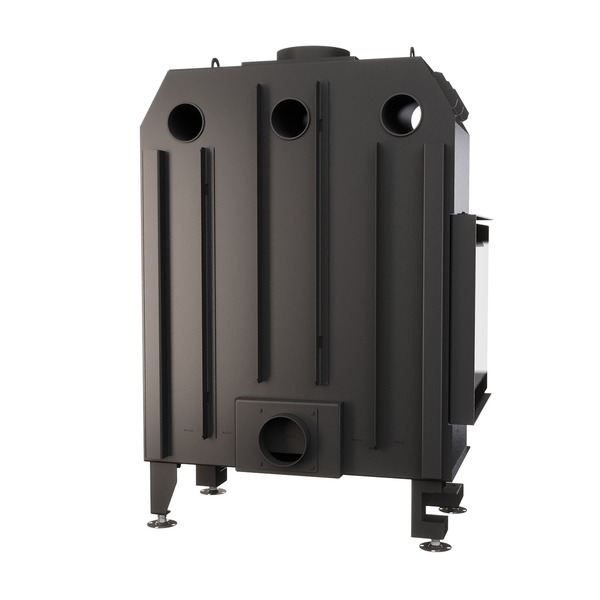

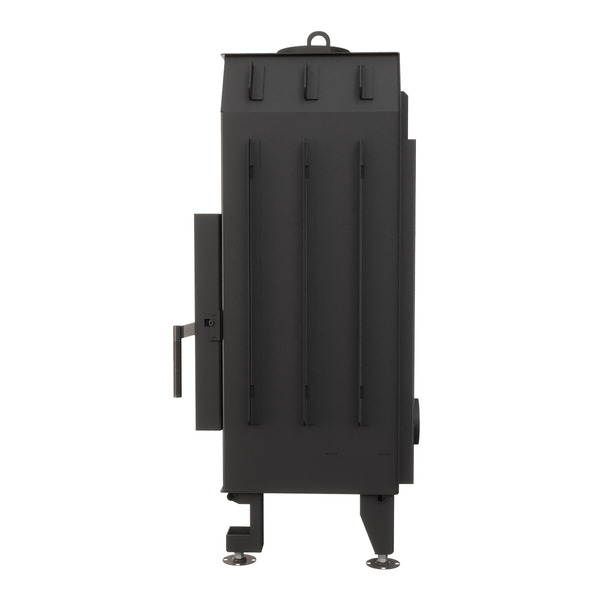

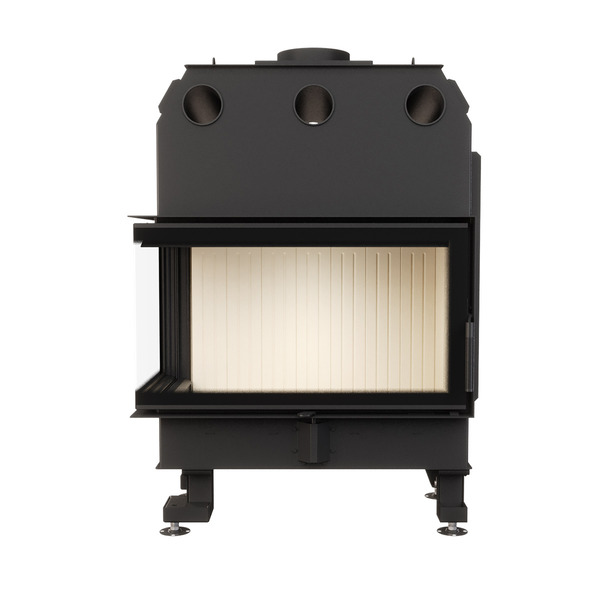

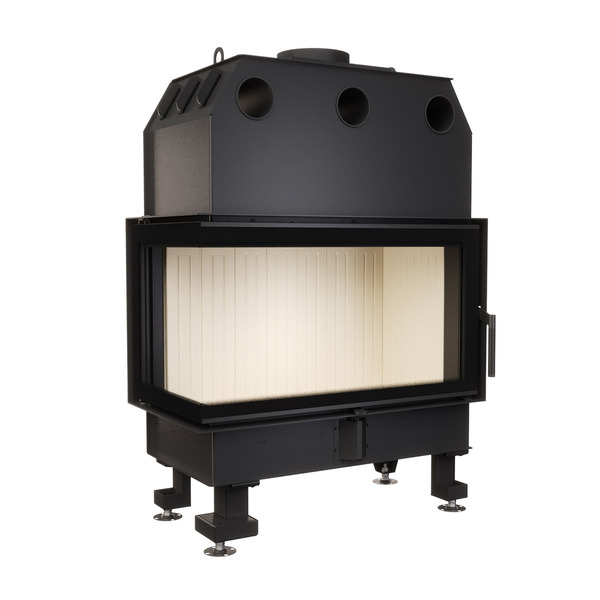

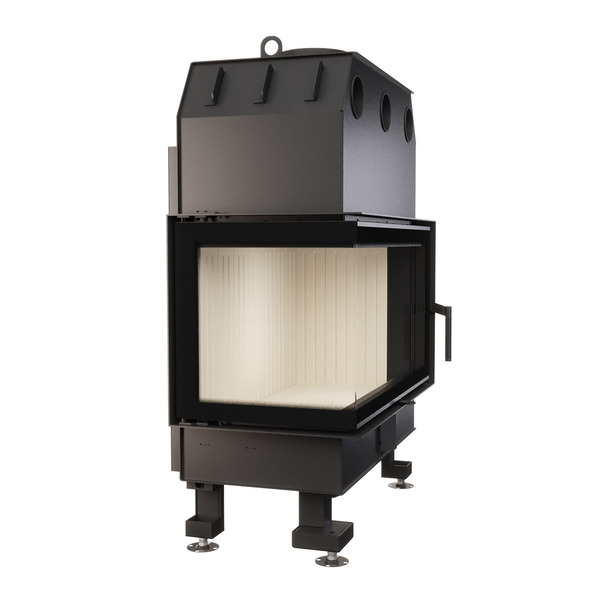

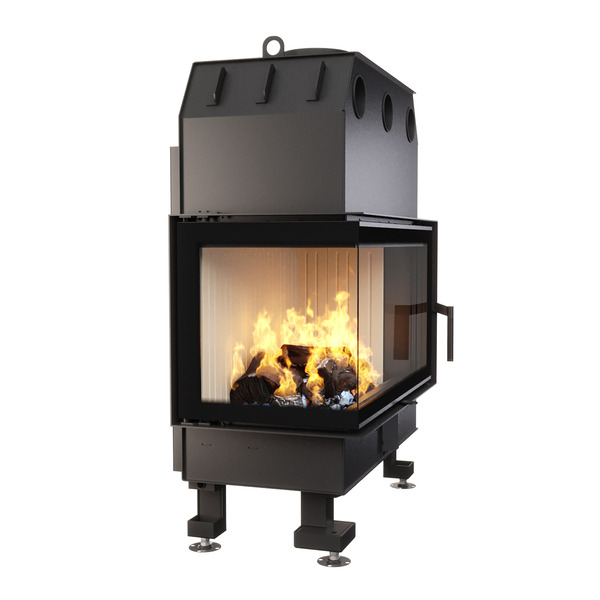

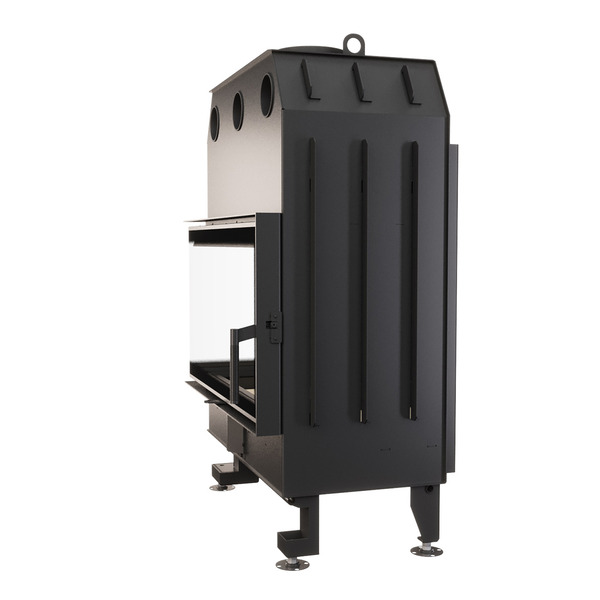

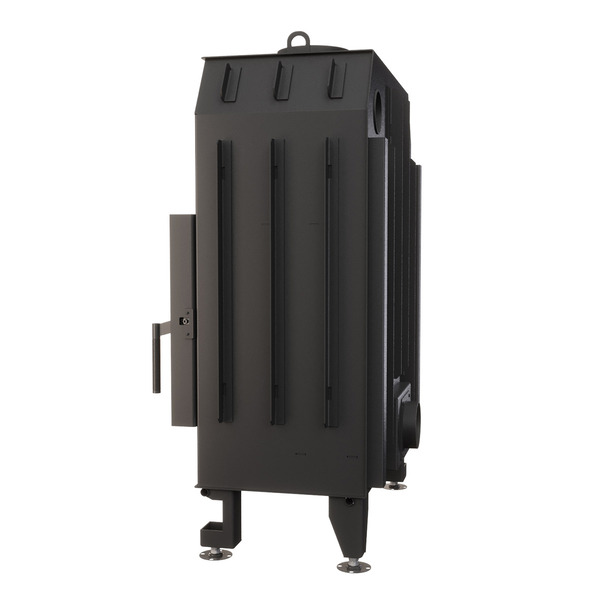

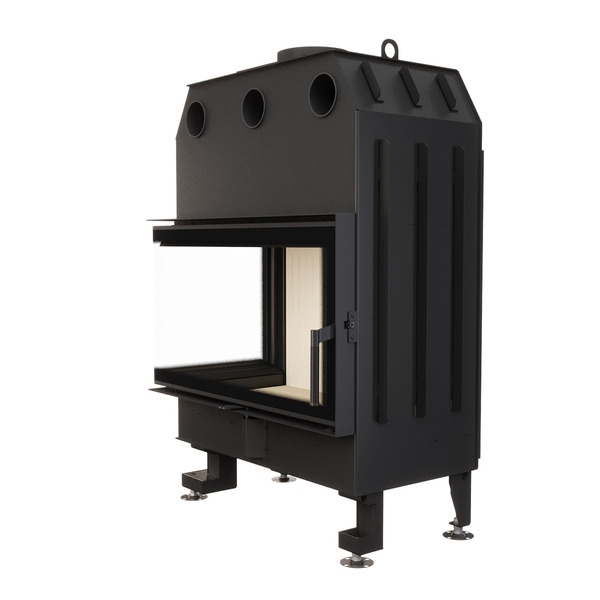

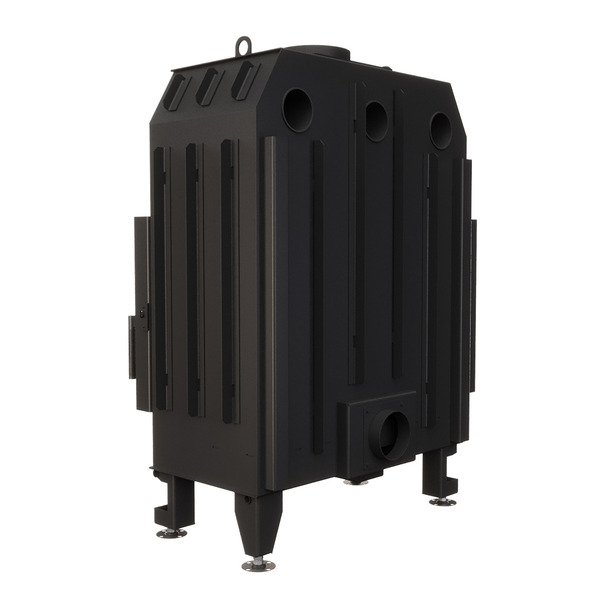

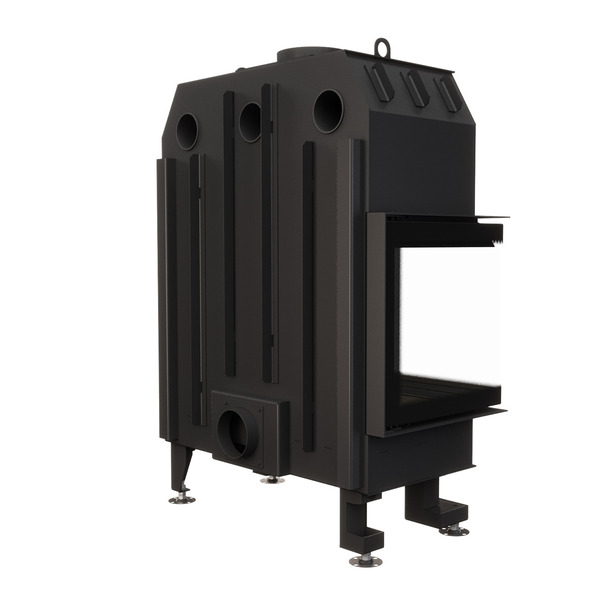

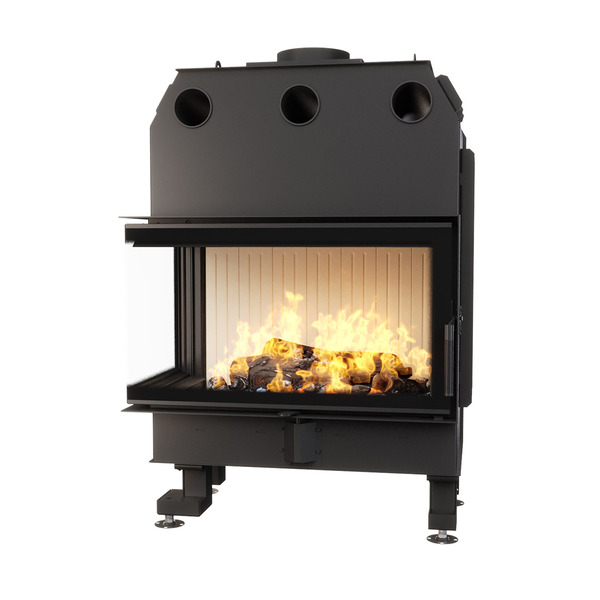

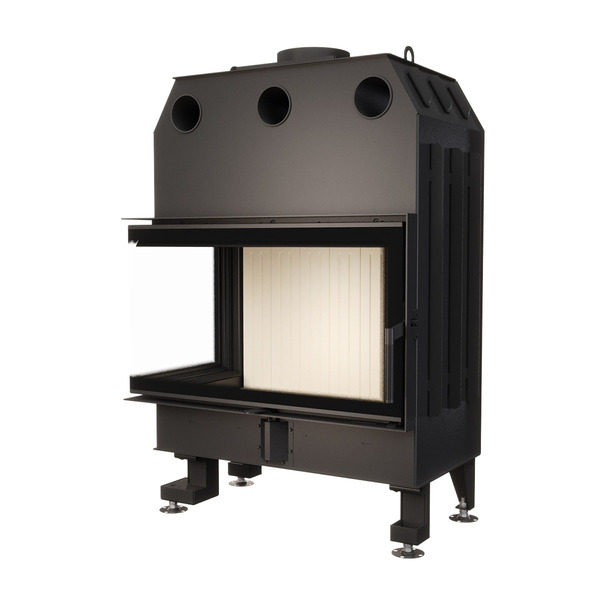

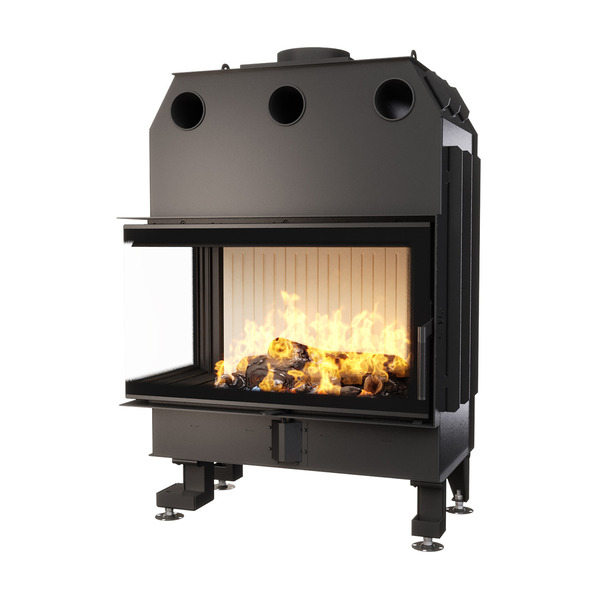

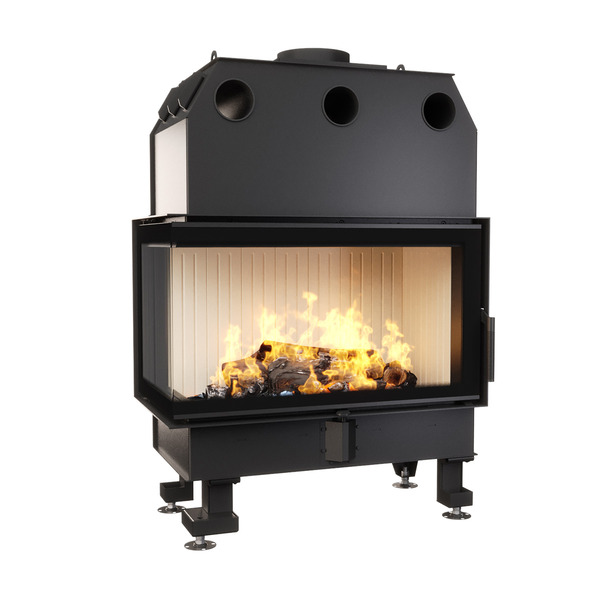

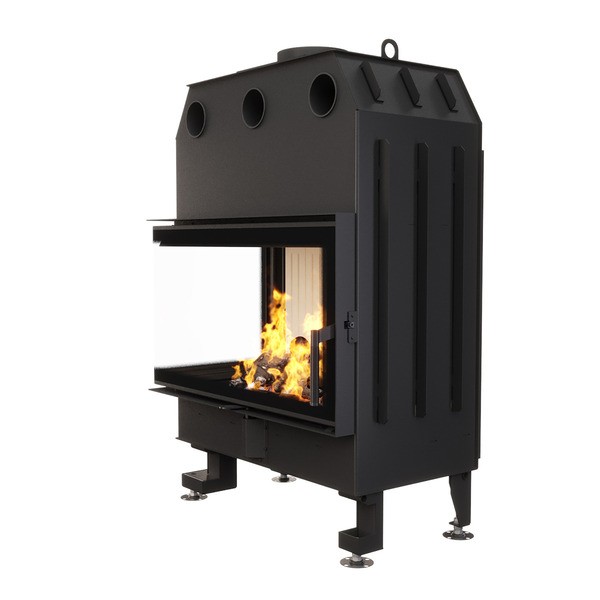

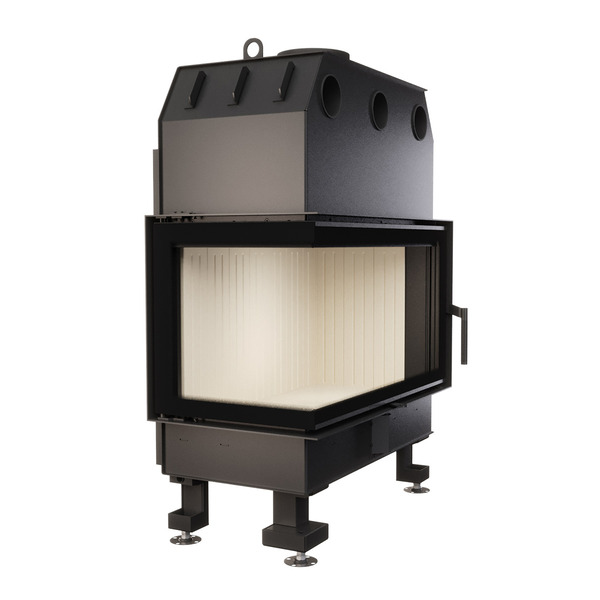

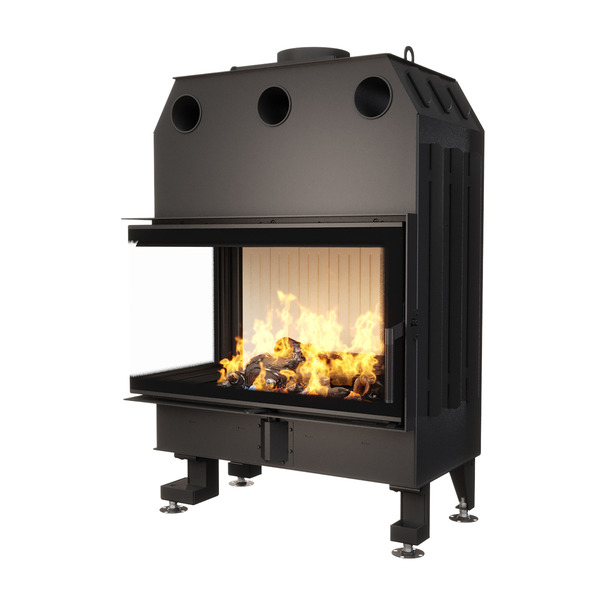

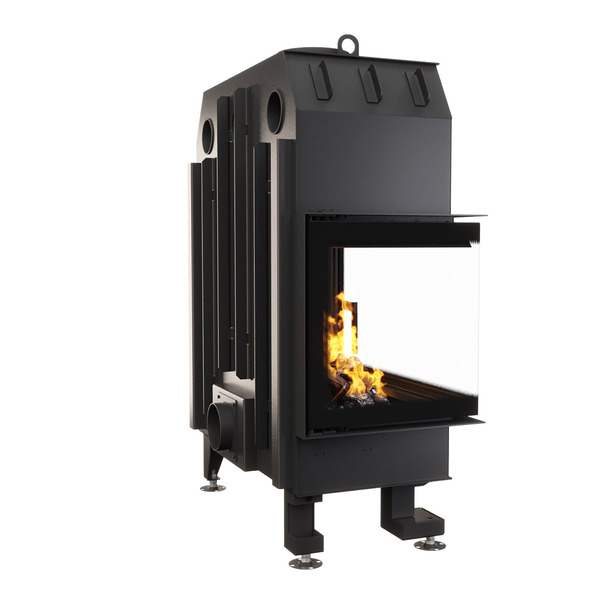

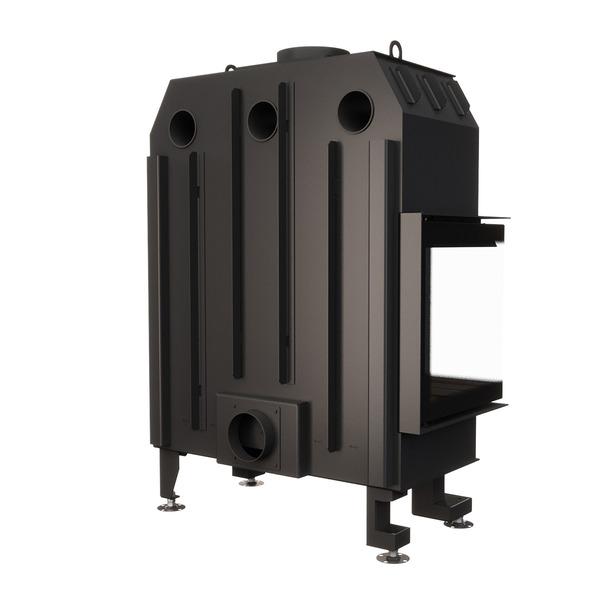

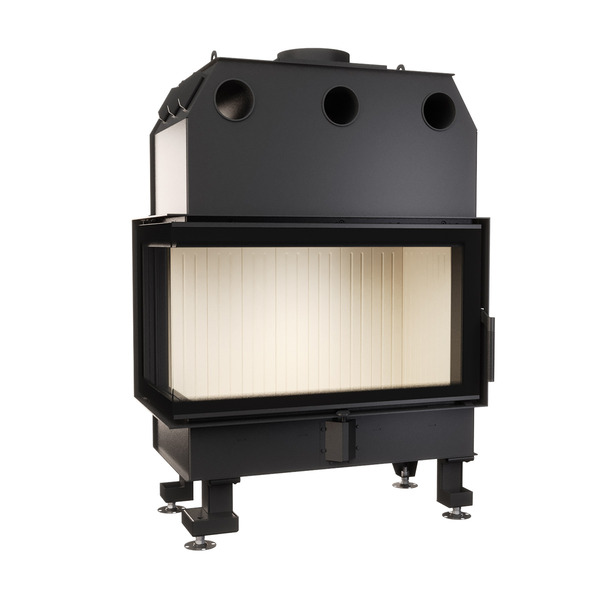

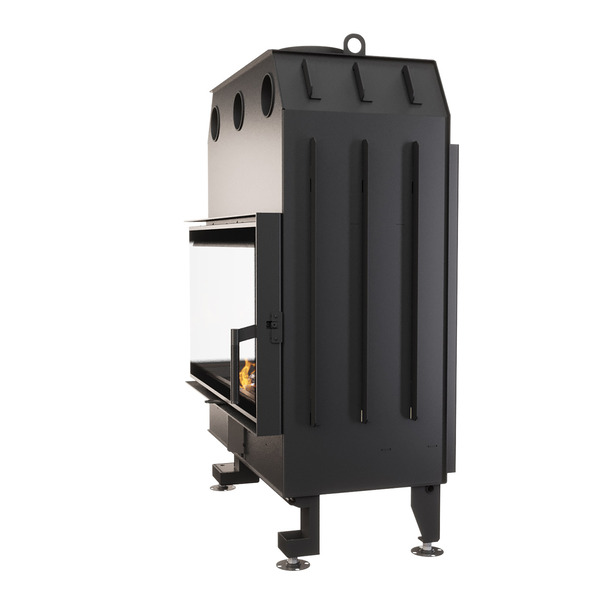

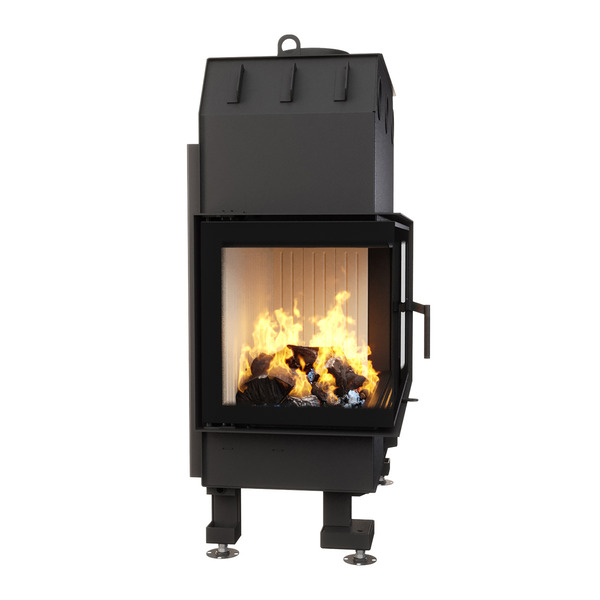

Fireplace insert SAVEN Energy 85x50x47L (17,0 kW) ECO. Photo 3D
Fireplace insert SAVEN Energy 85x50x47L (17,0 kW) ECO. Photo 2

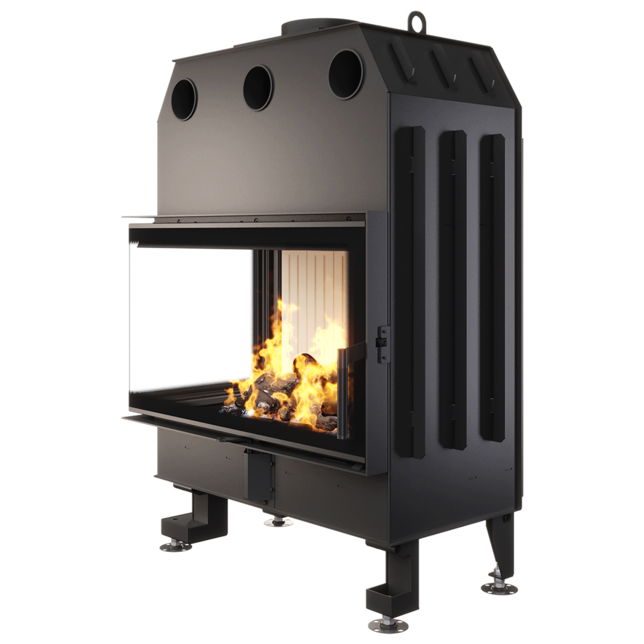

Fireplace insert SAVEN Energy 85x50x47L (17,0 kW) ECO. Photo 3

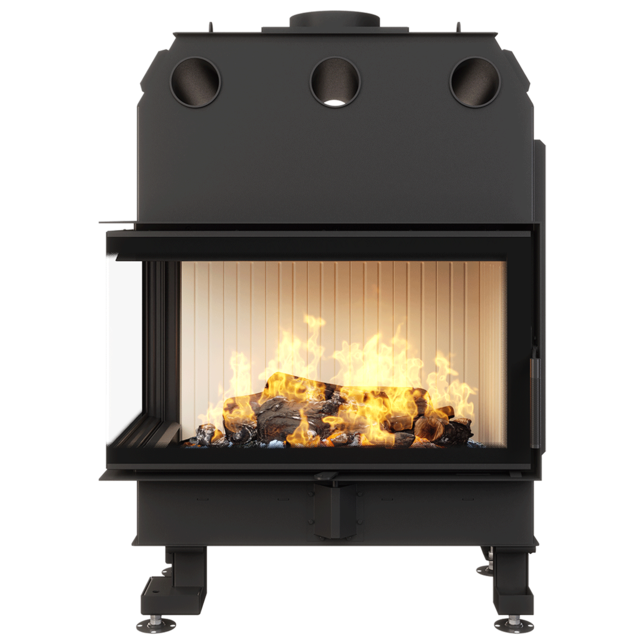

Fireplace insert SAVEN Energy 85x50x47L (17,0 kW) ECO. Photo 4

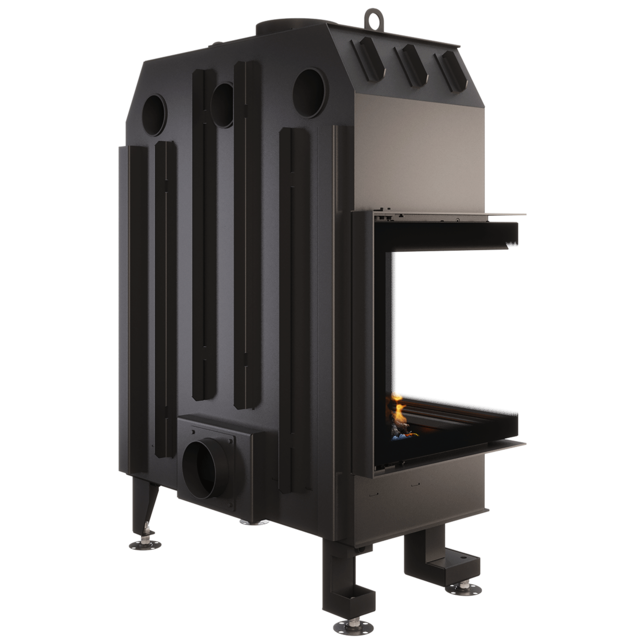

Fireplace insert SAVEN Energy 85x50x47L (17,0 kW) ECO. Photo 5

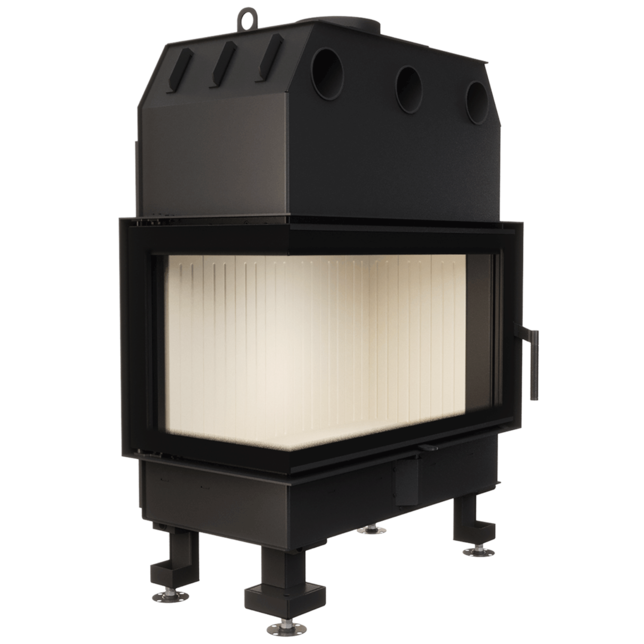

Fireplace insert SAVEN Energy 85x50x47L (17,0 kW) ECO. Photo 6

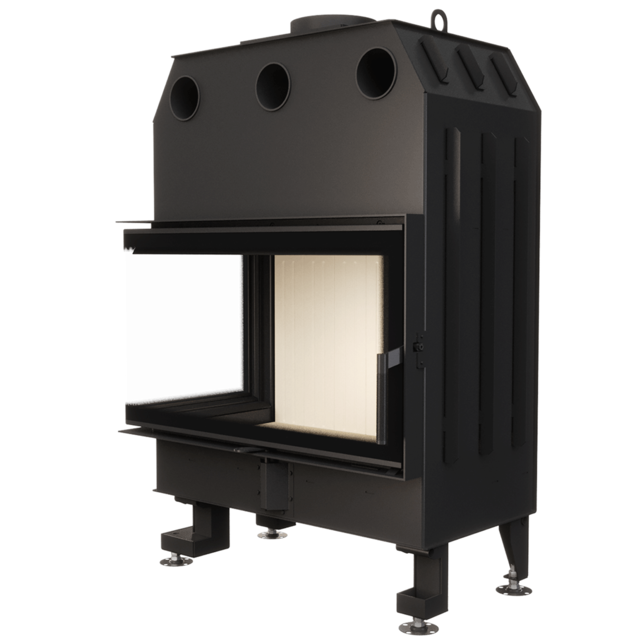

Fireplace insert SAVEN Energy 85x50x47L (17,0 kW) ECO. Photo 7

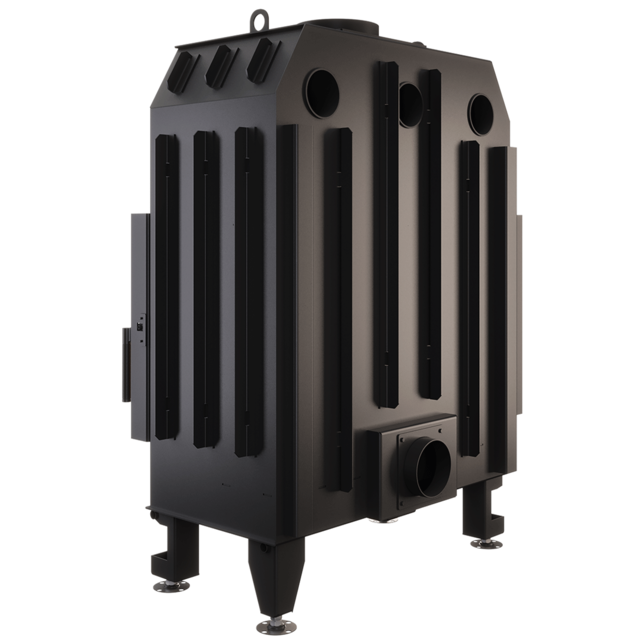

Fireplace insert SAVEN Energy 85x50x47L (17,0 kW) ECO. Photo 8

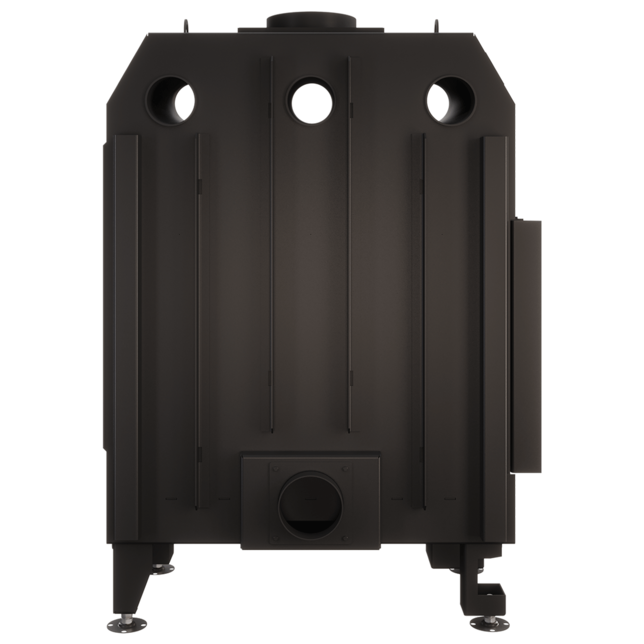

Fireplace insert SAVEN Energy 85x50x47L (17,0 kW) ECO. Photo 9

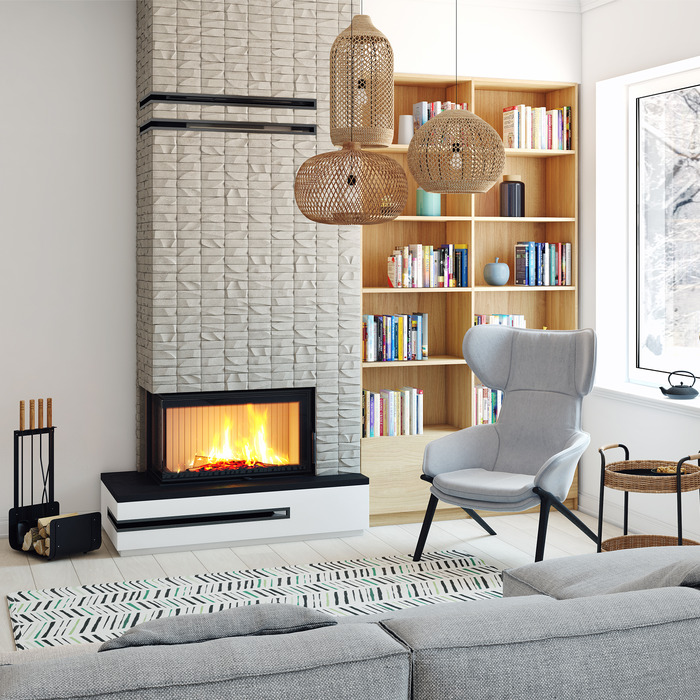

Fireplace insert SAVEN Energy 85x50x47L (17,0 kW) ECO. Photo 10
Fireplace insert SAVEN Energy 85x50x47L (17,0 kW) ECO. Photo 11
  • Sale
  • -13%
Product code: SE/85/50/47/L
For comparison

Fireplace insert SAVEN Energy 85x50x47L (17,0 kW) ECO

In stock
Characteristics Fireplace insert SAVEN Energy 85x50x47L (17,0 kW) ECO
Model description
  • Equipment type Fireplace inserts
  • Nominal heat output (kW) 17
  • Efficiency (%) 80
  • Heating capacity (m²/m³) 170 / 425
  • Door opening direction left
  • Glass form corner
  • Clean glass system yes
  • Double combustion yes
  • External air supply rear / bottom
  • Flue exit options top
  • Compatible with heat recovery ventilation yes
  • Compliant with Ecodesign requirements yes
  • Energy class A
Main dimensions
  • Weight (kg) 206
  • Width (mm) 886.5
  • Height (mm) 1253
  • Depth (mm) 542
  • Flue pipe diameter (mm) 200
  • Recommended cross-sectional area of outlet ventilation grilles ≥ 1275 cm²
  • Recommended cross-sectional area of intake ventilation grilles ≥ 850 cm²
Additional dimensions
  • External air supply diameter (mm) 125
  • Main glass dimensions (mm) 821x460x4
  • Side glass dimensions (mm) 436x460x4
  • Max length of wood (mm) 700
Additional information
  • Material steel
  • Chamotte color white
  • Fuel wood
  • Warranty (months) 60
  • Manufacturer SAVEN
  • Country Ukraine
  • Barcode (GTIN) 4820295260127
Main dimensions
  • Weight (kg) 206
  • Width (mm) 886.5
  • Height (mm) 1253
  • Depth (mm) 542
  • Flue pipe diameter (mm) 200
  • Recommended cross-sectional area of outlet ventilation grilles ≥ 1275 cm²
  • Recommended cross-sectional area of intake ventilation grilles ≥ 850 cm²
Additional information
  • Material steel
  • Chamotte color white
  • Fuel wood
  • Warranty (months) 60
  • Manufacturer SAVEN
  • Country Ukraine
  • Barcode (GTIN) 4820295260127
Model description
  • Equipment type Fireplace inserts
  • Nominal heat output (kW) 17
  • Efficiency (%) 80
  • Heating capacity (m²/m³) 170 / 425
  • Door opening direction left
  • Glass form corner
  • Clean glass system yes
  • Double combustion yes
  • External air supply rear / bottom
  • Flue exit options top
  • Compatible with heat recovery ventilation yes
  • Compliant with Ecodesign requirements yes
  • Energy class A
Additional dimensions
  • External air supply diameter (mm) 125
  • Main glass dimensions (mm) 821x460x4
  • Side glass dimensions (mm) 436x460x4
  • Max length of wood (mm) 700
Description Fireplace insert SAVEN Energy 85x50x47L (17,0 kW) ECO

SAVEN Energy 85x50x47L (17,0 kW)​ ECO Steel Corner Fireplace Insert

SAVEN's steel corner fireplace inserts are made from certified materials and unique technologies. The main advantages of the SAVEN Energy 85x50x47L (17,0 kW) ECO steel corner fireplace insert include:

Modern technologies and energy efficiency

The SAVEN Energy 85x50x47L (17,0 kW) ECO steel corner fireplace insert is a versatile insert for a corner fireplace that will fit into any interior and will safely serve for decades.

  • High efficiency of the steel fireplace insert due to the implementation of a design for exhaust gas removal.
  • Compatibility of the steel fireplace insert with a heat recovery system.
  • Bottom and rear air connections.
  • Double deflector in the steel fireplace insert for increased efficiency and better heat transfer.
  • Sturdy and rigid construction that does not deform or succumb to high temperatures.
  • Sealing of the steel fireplace insert with fireplace cords for additional sealing.
  • A reinforced door profile of the steel fireplace insert with glass that is resistant to bending and twisting under the influence of high temperatures.
  • Unique design of the corner legs of the steel fireplace insert with glass that ensures easy and quick installation.
  • Smooth and easy flame control with a single regulator.

The SAVEN Energy 85x50x47L (17,0 kW) ECO steel corner fireplace insert is made exclusively from proven and high-quality materials, including:

  1. Sheet hot-rolled low-alloy boiler carbon steel with a thickness of 3 to 5 mm.
  2. Lining with thick protective refractory plates with an original design from SAVEN.
  3. Ecologically safe paint that does not emit smoke when ignited and is resistant to high-temperature fluctuations.
  4. Heat-resistant glass from the German manufacturer Schott Robax (4 mm), which can withstand temperatures up to 760 °C.

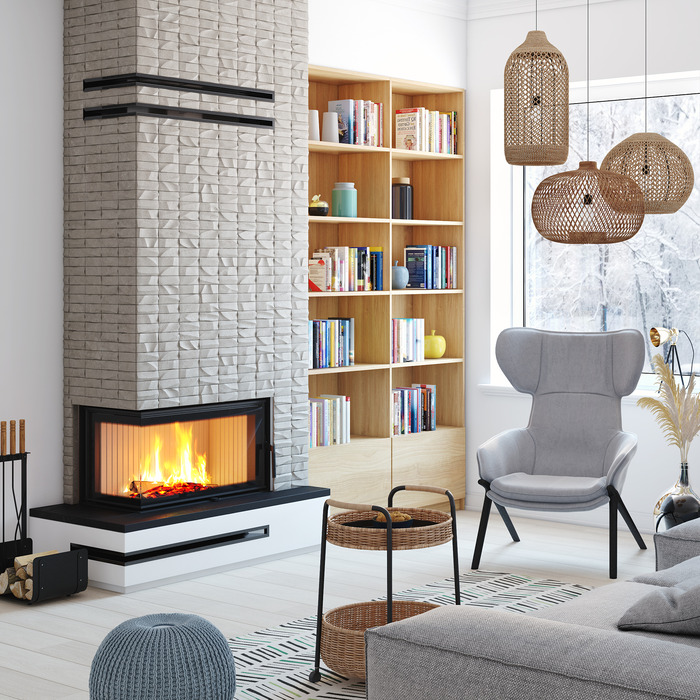

In the interior

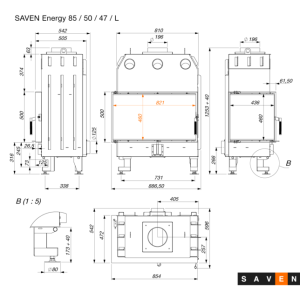

Technical drawing Fireplace insert SAVEN Energy 85x50x47L (17,0 kW) ECO
Documentation 3D files
Barcode SAVEN Energy 85x50x47L (17,0 kW) ECO PDF, 0.1 Mb
Installation and operation manual SAVEN PDF, 66.1 Mb
Declaration of perfomance SE 85x50x47L PDF, 1.1 Mb
Technical documentation SE 85x50x47L PDF, 1.3 Mb
Product sheet SE 85x50x47L PDF, 0.1 Mb
Energy efficiency SE 85x50x47L PDF, 0.1 Mb
Catalog of SAVEN products PDF, 78.7 Mb
