Product code: SE/65/50/47/R
Fireplace insert SAVEN Energy 65x50x47R (14,5 kW) ECO
Product code: SE/65/50/47/R
For comparison
Fireplace insert SAVEN Energy 65x50x47R (14,5 kW) ECO
In stock
1 898.00
Characteristics Fireplace insert SAVEN Energy 65x50x47R (14,5 kW) ECO
Model description
  • Nominal heat output (kW) 14.5
  • Efficiency (%) 79.7%
  • Heating capacity (m²/m³) 145 / 363
  • Door opening mechanism right side
  • Glass form corner
  • "Clean glass" system yes
  • Double combustion yes
  • External air supply lower / rear
  • Flue exit options top
  • Compatible with recuperation yes
  • Compatible with Ecodesign requirements yes
  • Energy class A
Main dimensions
  • Weight (kg) 173
  • Length (mm) 684
  • Height (mm) 1253
  • Width (mm) 542
  • Flue pipe diameter (mm) 180
  • Recommended ventilation area of the air outlet grills ≥ 1090 см²
  • Recommended ventilation area of the air intake grills ≥ 725 cm²
Additional dimensions
  • Air inlet diameter (mm) 100
  • Main glass demension (mm) 618х460х4
  • Side glass demension (mm) 436х460х4
  • Max length of wood (mm) 500
Additional Information
  • Material Steel
  • Chamotes color white
  • Fuel wood
  • Producer SAVEN
  • Country Ukraine
  • Warranty period (months) 60
Main dimensions
  • Weight (kg) 173
  • Length (mm) 684
  • Height (mm) 1253
  • Width (mm) 542
  • Flue pipe diameter (mm) 180
  • Recommended ventilation area of the air outlet grills ≥ 1090 см²
  • Recommended ventilation area of the air intake grills ≥ 725 cm²
Additional Information
  • Material Steel
  • Chamotes color white
  • Fuel wood
  • Producer SAVEN
  • Country Ukraine
  • Warranty period (months) 60
Model description
  • Nominal heat output (kW) 14.5
  • Efficiency (%) 79.7%
  • Heating capacity (m²/m³) 145 / 363
  • Door opening mechanism right side
  • Glass form corner
  • "Clean glass" system yes
  • Double combustion yes
  • External air supply lower / rear
  • Flue exit options top
  • Compatible with recuperation yes
  • Compatible with Ecodesign requirements yes
  • Energy class A
Additional dimensions
  • Air inlet diameter (mm) 100
  • Main glass demension (mm) 618х460х4
  • Side glass demension (mm) 436х460х4
  • Max length of wood (mm) 500
Description Fireplace insert SAVEN Energy 65x50x47R (14,5 kW) ECO

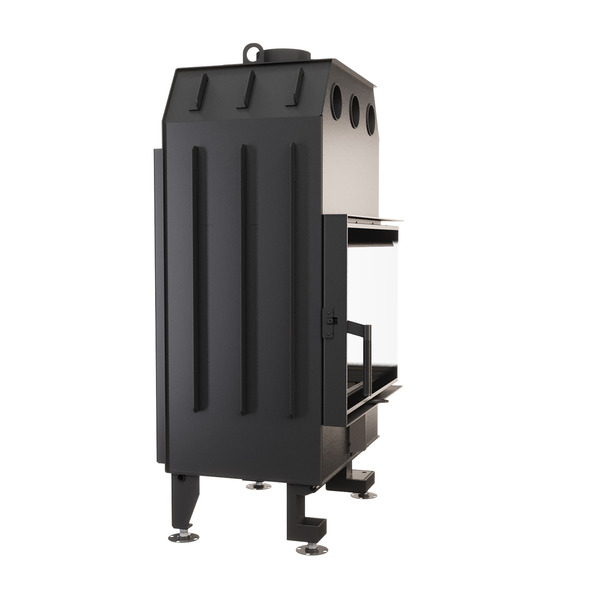

SAVEN Energy 65x50x47R (14.5 kW) ECO Steel Corner Fireplace Insert

SAVEN's steel corner fireplace inserts are made from certified materials and unique technologies. The main advantages of the SAVEN Energy 65x50x47R (14.5 kW) ECO steel corner fireplace insert include:

Modern technologies and energy efficiency

The SAVEN Energy 65x50x47R (14.5 kW) ECO steel corner fireplace insert is a versatile insert for a corner fireplace that will fit into any interior and will safely serve for decades.

  • High efficiency of the steel fireplace insert due to the implementation of a design for exhaust gas removal.
  • Compatibility of the steel fireplace insert with a heat recovery system.
  • Bottom and rear air connections.
  • Double deflector in the steel fireplace insert for increased efficiency and better heat transfer.
  • Sturdy and rigid construction that does not deform or succumb to high temperatures.
  • Sealing of the steel fireplace insert with fireplace cords for additional sealing.
  • A reinforced door profile of the steel fireplace insert with glass that is resistant to bending and twisting under the influence of high temperatures.
  • Unique design of the corner legs of the steel fireplace insert with glass that ensures easy and quick installation.
  • Smooth and easy flame control with a single regulator.

The SAVEN Energy 65x50x47R (14.5 kW) ECO steel corner fireplace insert is made exclusively from proven and high-quality materials, including:

  1. Sheet hot-rolled low-alloy boiler carbon steel with a thickness of 3 to 5 mm.
  2. Lining with thick protective refractory plates with an original design from SAVEN.
  3. Ecologically safe paint that does not emit smoke when ignited and is resistant to high-temperature fluctuations.
  4. Heat-resistant glass from the German manufacturer Schott Robax (4 mm), which can withstand temperatures up to 760 °C.
Fireplace in the interior
Technical drawing Fireplace insert SAVEN Energy 65x50x47R (14,5 kW) ECO
Documentation 3D files
Technical documentation SE 65х50х47R PDF, 1.1 Mb
Declaration of conformity with the ecodesign requirements SE 65х50x47R PDF, 1.1 Mb
Product sheet SE 65х50x47R PDF, 0.1 Mb
EU Declaration of conformity SE 65х50x47R PDF, 1.7 Mb
CE Certificate SE 65x50x47R PDF, 0.1 Mb
Declaration of perfomance SE 65x50x47R PDF, 0.6 Mb
Energy efficiency SE 65х50х47R PDF, 0.8 Mb
Catalog fireplase inserts, stoves and grilles SAVEN PDF, 187.3 Mb
